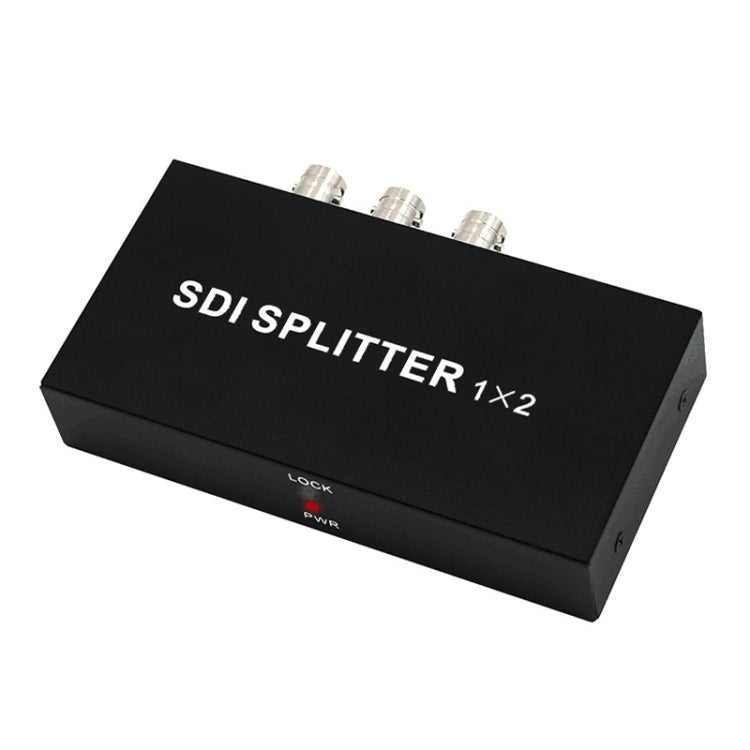

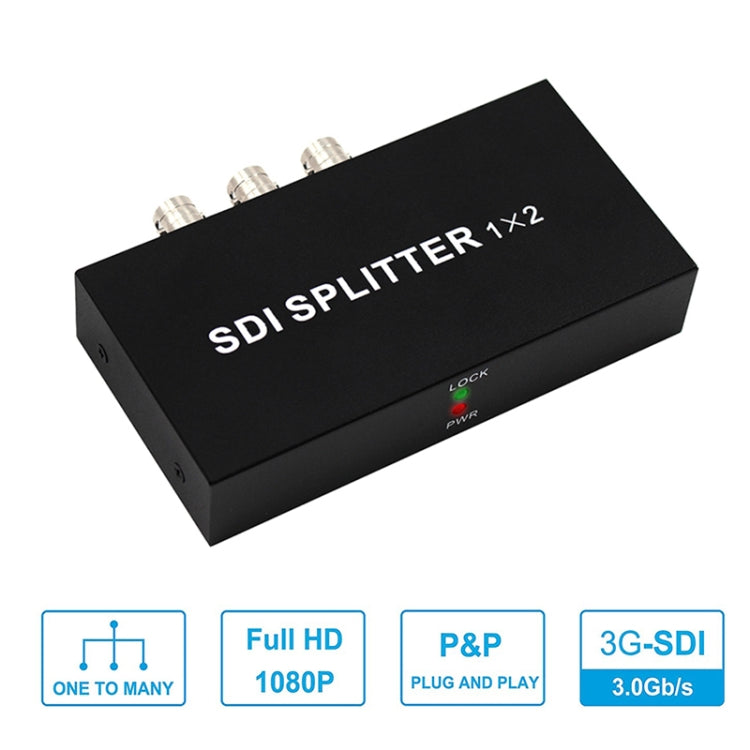

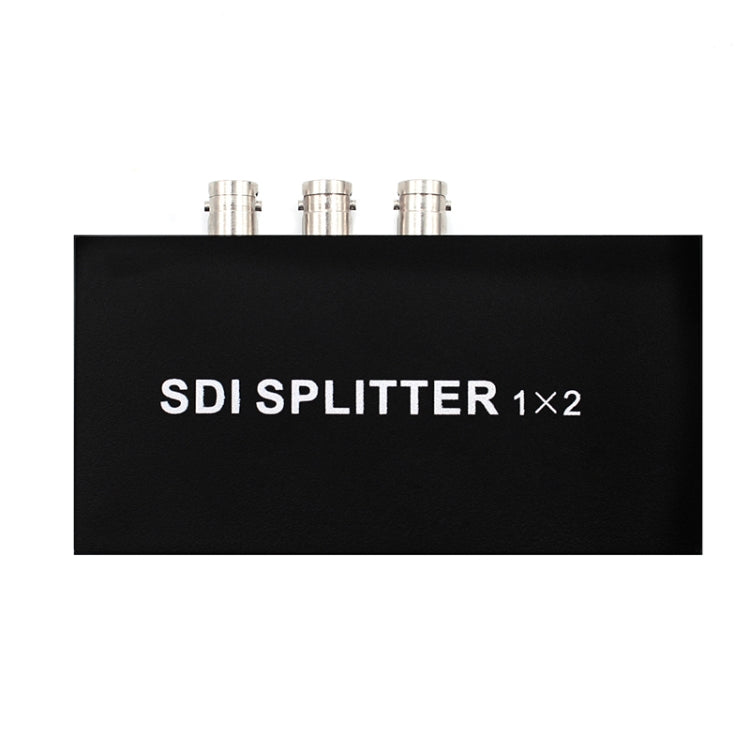

Rynx | 1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (EU Plug)
Rynx | 1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (EU Plug)
In stock
- Free Shipping
Couldn't load pickup availability

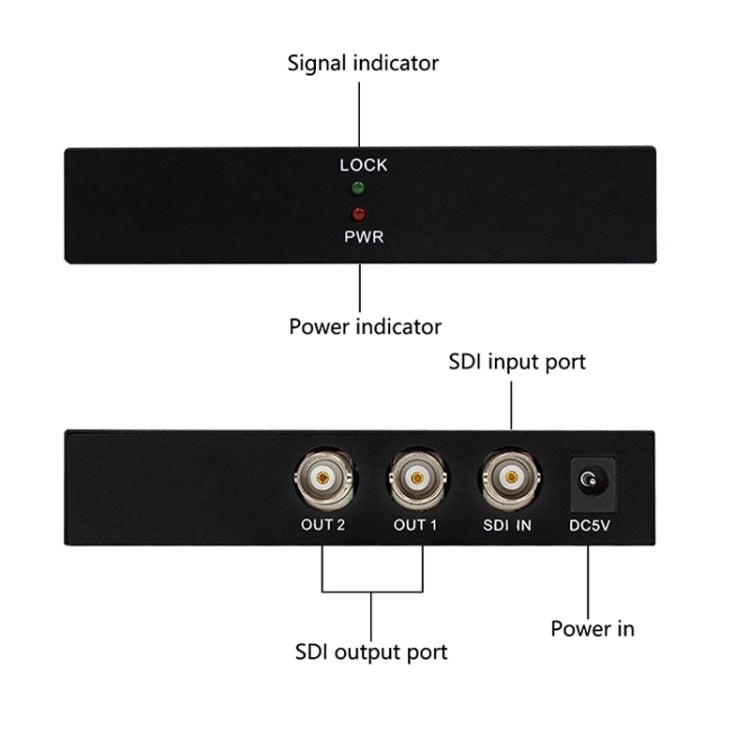

1. SDI Output Interface: BNC SDI×2 SDI×4 SDI×8
2. Compatible SDI Standards: SMPTE 424M, SMPTE 292M and SMPTE 259M-C
3. SDI Signal Format: SD-SDI HD-SDI 3G-SDI
4. Supported SDI Rate: 143-2970MB/S
5. SDI Impedance: 75 Ohm
6. Resolutions: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI Output Signal Amplitude: 800mVp-p

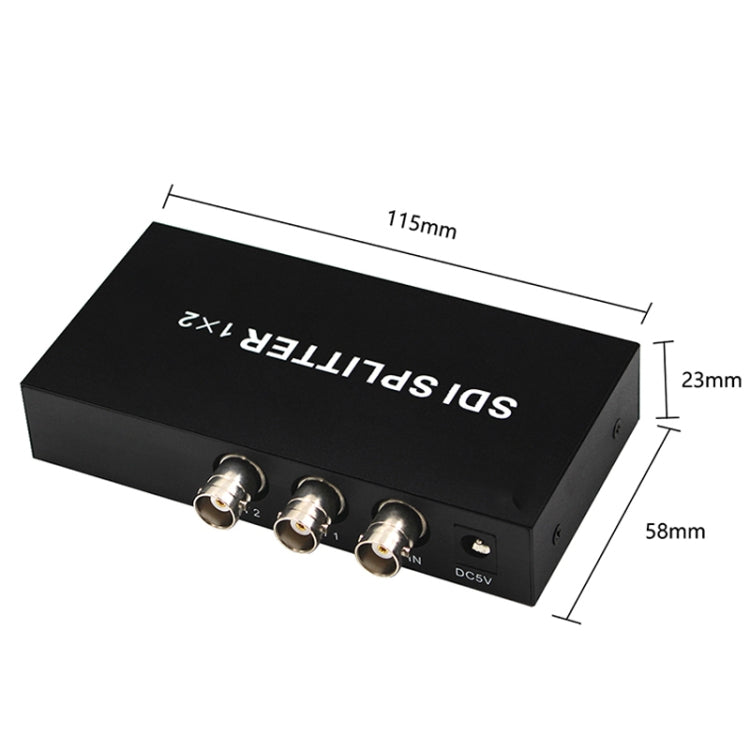

8. Dimensions: 115 x 58 x 23mm

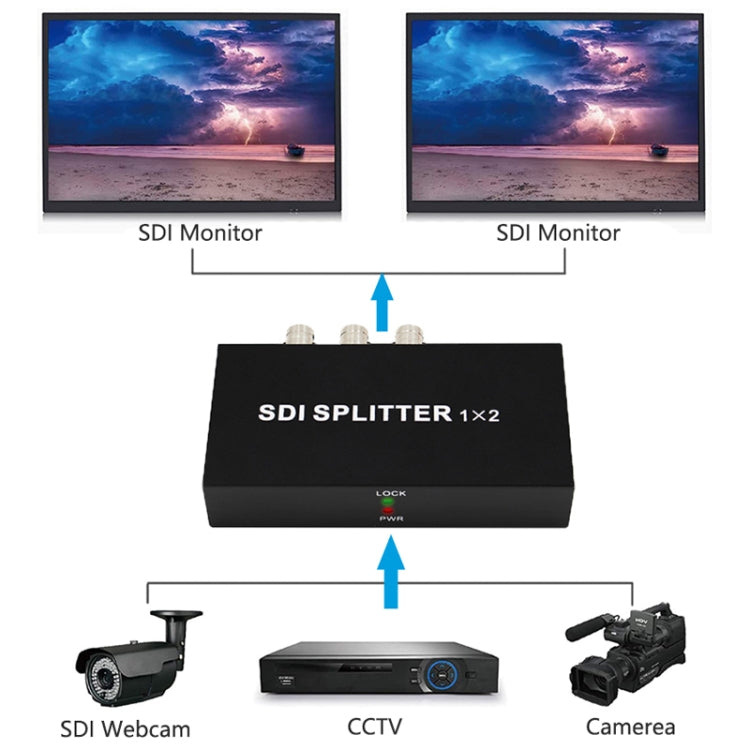

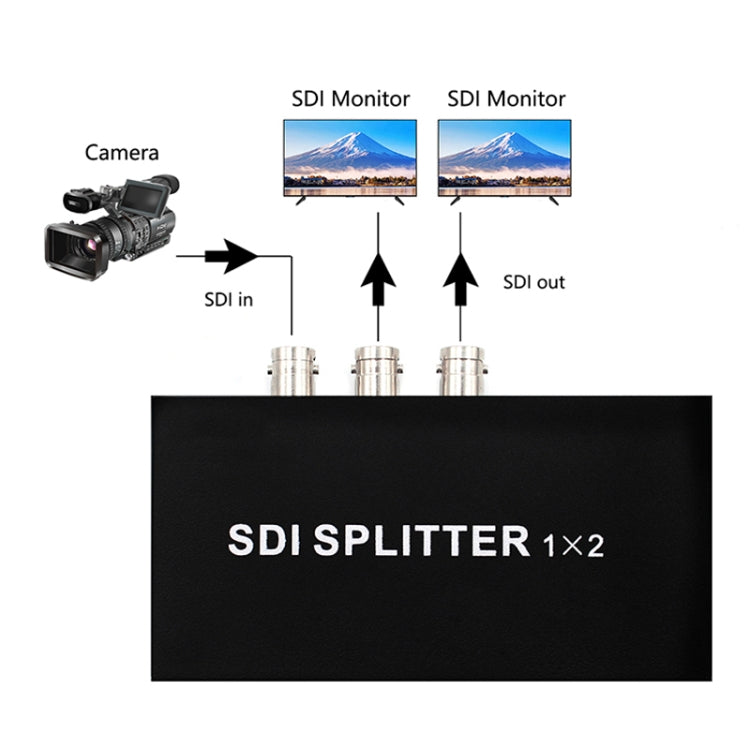

Installation Steps:
1. Connect the SDI input interface to the SDI signal source using a coaxial cable.
2. The SDI output can be linked to other display devices that support SDI signal input.
3. Power on the unit to initiate operation.
Function Description:
1. SDI Distribution Function: Connect the hardware as per the three "Installation Steps," and the SDI splitter will operate normally. The SDI splitter is compatible with SD-SDI (270Mbps), HD-SDI (1.485Gbps), and full HD 3G-SDI (2.97 Gbps) video formats for SDI video distribution.
2. Extension Function: This product accommodates cable lengths up to (Belden-1694A); SDI input and output range: SD supports up to 400m, HD supports 200m, and 3G supports 100m (theoretical value; actual distance varies depending on cable quality).
3. Wide Voltage Design: Integrated wide voltage design supports DC5V~36V input voltage (power up to 2W).
4. Intelligent Design: It utilizes pure hardware processing for plug-and-play convenience and can automatically detect various SDI signals. When a valid SDI signal is present, the LED indicator glows green. If there's no signal or a non-compliant signal, the LED turns off, making it easier for engineering customers to diagnose issues.
