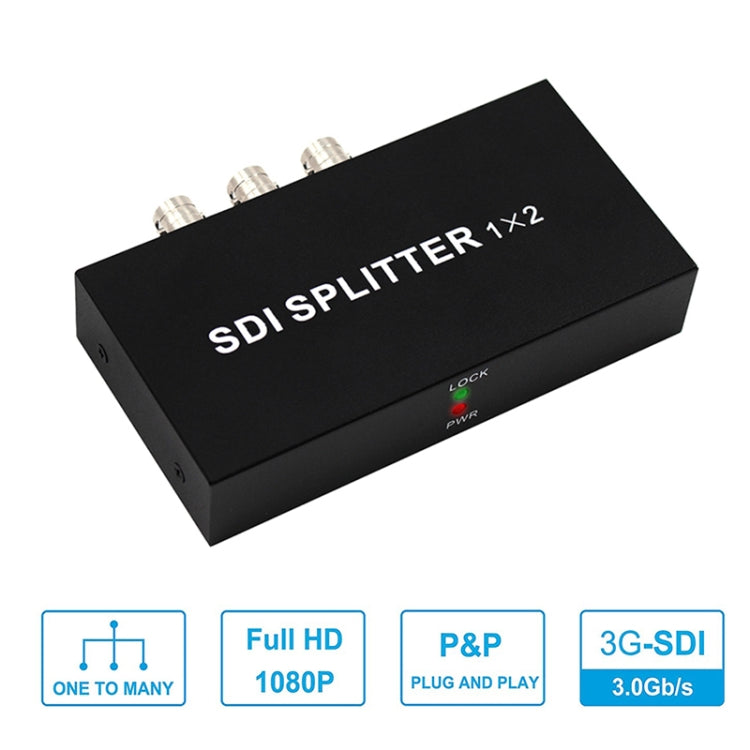

Rynx | 1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (US Plug)
Rynx | 1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (US Plug)
In stock
- Free Shipping
Couldn't load pickup availability
2. Supported SDI standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI signal format: SD-SDI, HD-SDI, 3G-SDI
4. Supported SDI rate: 143-2970MB/S
5. SDI impedance: 75 Ohm
6. Resolutions: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI output signal amplitude: 800mVp-p

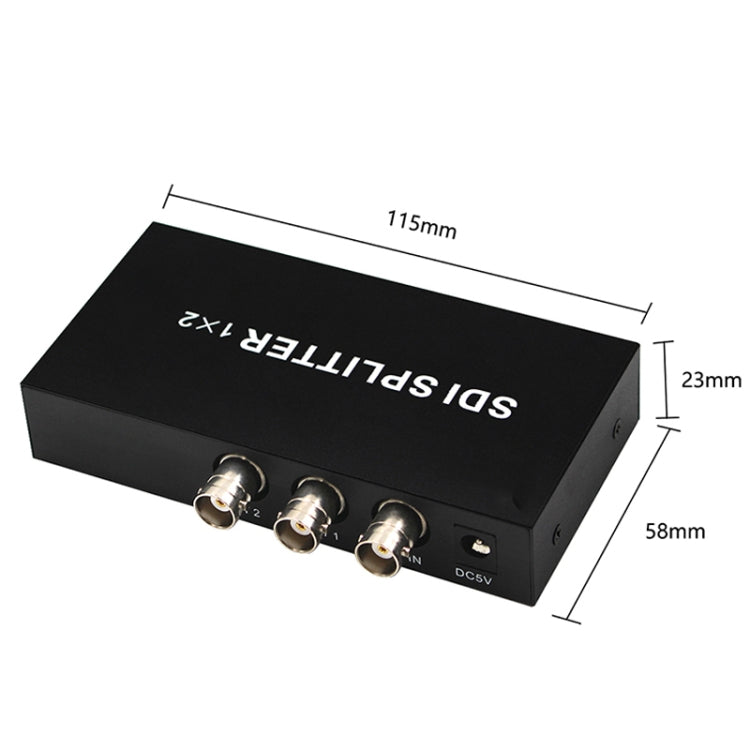

8. Dimensions: 115 x 58 x 23 mm

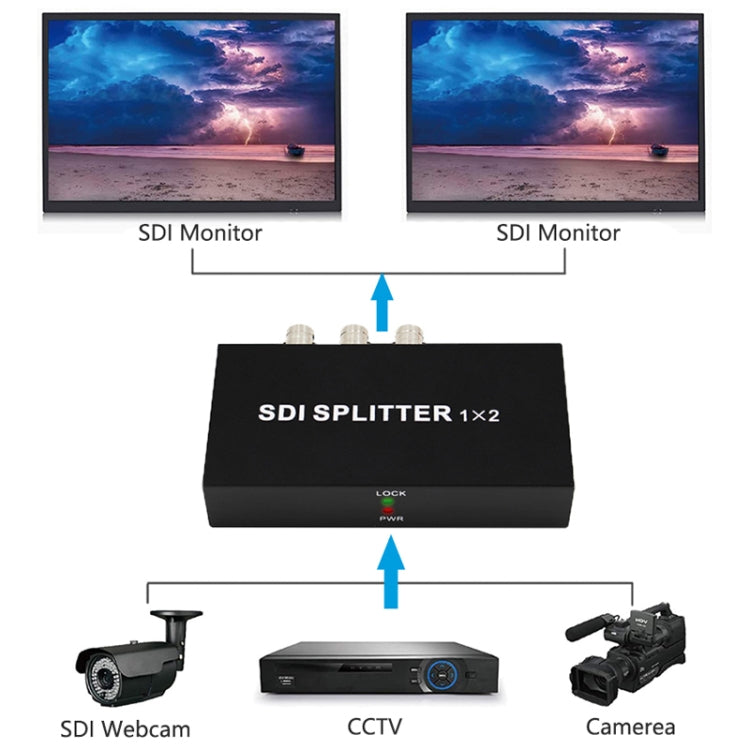

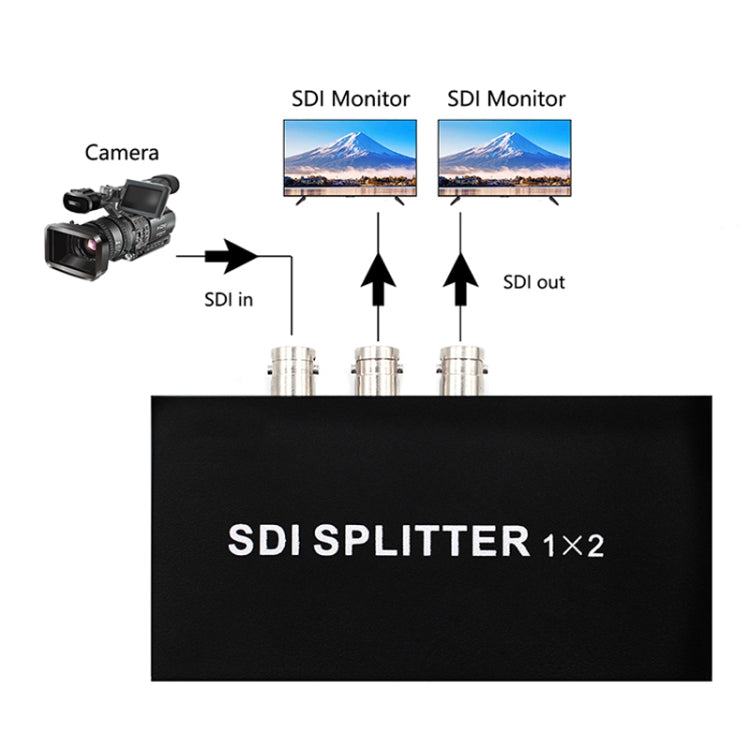

Installation steps:
1. Connect the SDI input interface to the SDI signal source using a coaxial cable.
2. The SDI output can be linked to other display units that support SDI signals.
3. Power on the device, and it will start operating.
Function description:
1. SDI distribution function: Follow the three "Installation steps" to connect the hardware, and the SDI splitter will function correctly. The SDI splitter is compatible with SD-SDI (270Mbps), HD-SDI (1,485Gbps), and 3G-SDI (2.97 Gbps) video formats for SDI video distribution.
2. Extension feature: This product accommodates cables up to (Belden-1694A); SDI input and output distances: SD supports 400m, HD supports 200m, and 3G supports 100m (theoretical values; actual distances depend on cable quality).
3. Wide voltage design: features an integrated wide voltage design, supporting DC5V~36V voltage input (maximum power up to 2W).

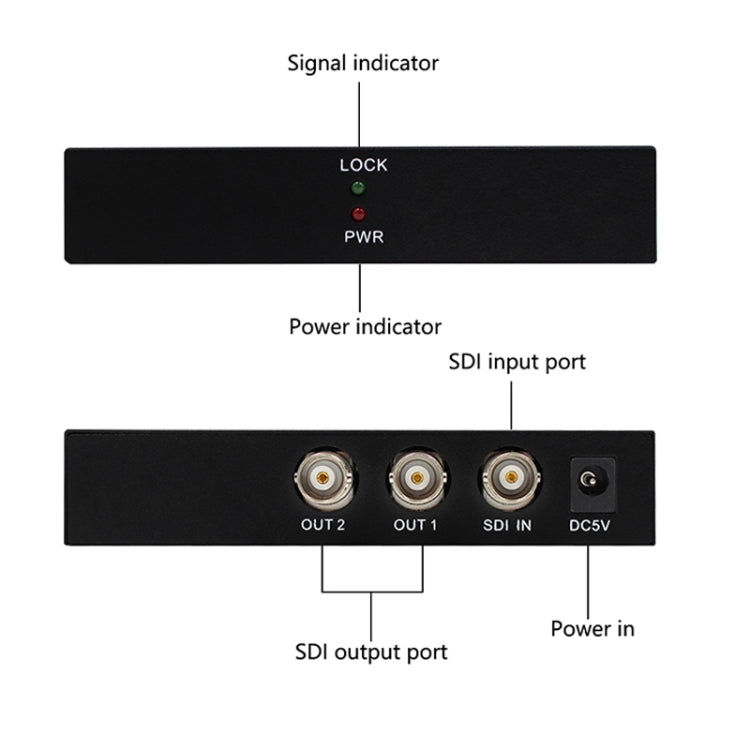

4. Intelligent design: Utilizes pure hardware processing for plug-and-play capability and can automatically detect various SDI signals. When a valid SDI signal is detected, the LED indicator turns green. If no signal is present or the signal does not meet standards, the LED indicator turns off, making it easier for engineers to identify issues.
