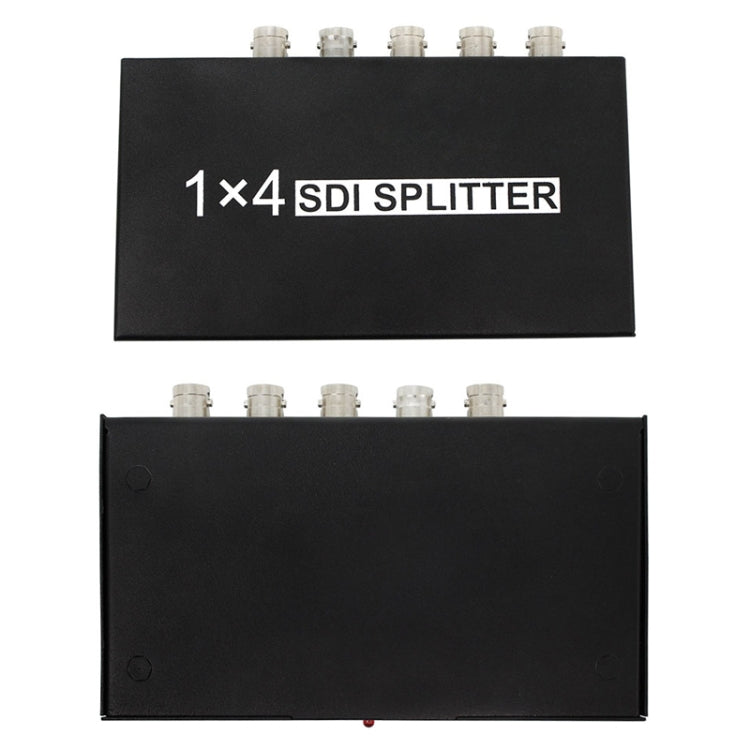

1. SDI output interface: BNC SDI×2 SDI×4 SDI×8
2. Compatible SDI standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI signal format: SD-SDI HD-SDI 3G-SDI
4. Supported SDI transmission rates: 143-2970MB/S
5. SDI impedance: 75 Ohm
6. Resolutions supported: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI output signal amplitude: 800mVp-p

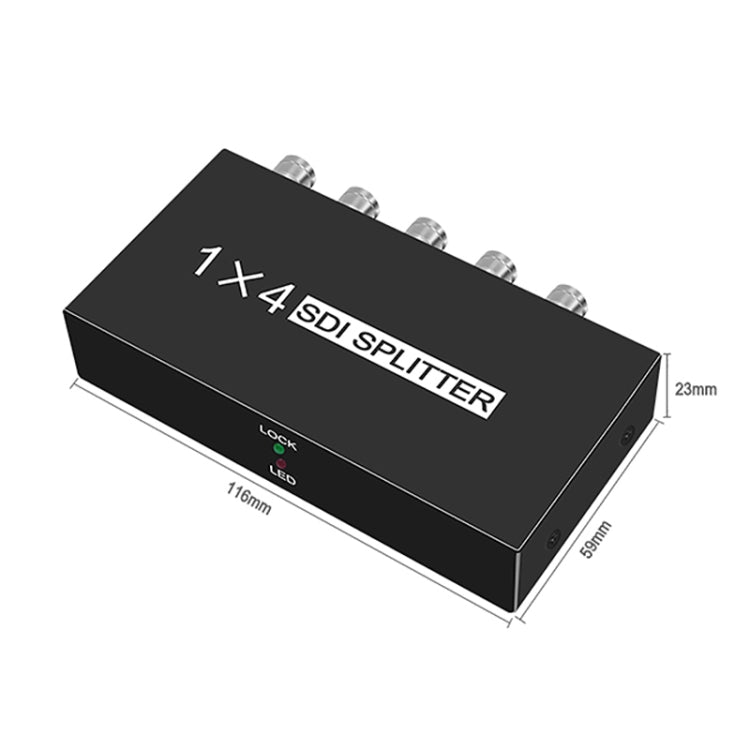

8. Dimensions: 116 x 59 x 23mm

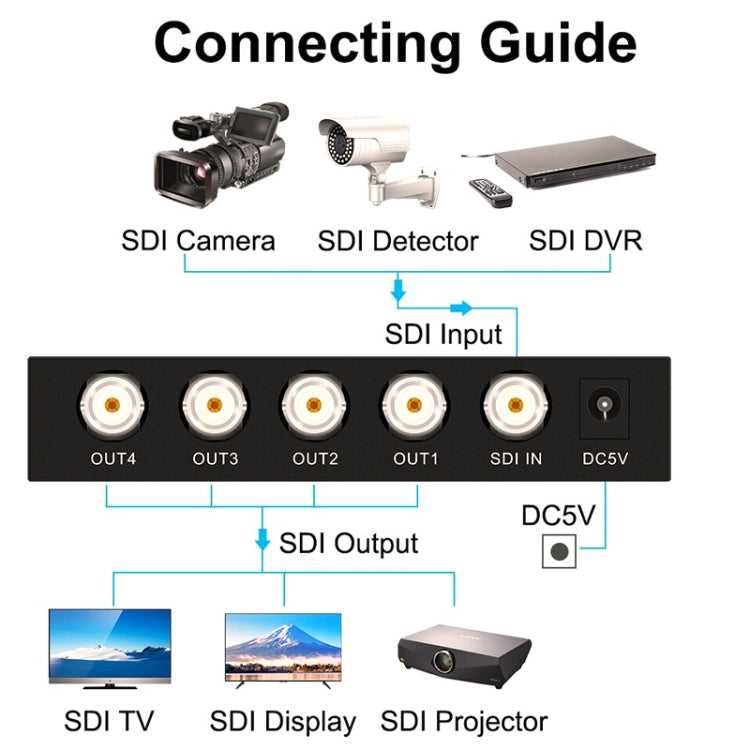

Installation steps:
1. Connect the SDI input interface to the SDI signal source using a coaxial cable
2. The SDI output can be linked to other display devices that accept SDI signal input
3. Power on the device, and it will begin operation
Functional description:

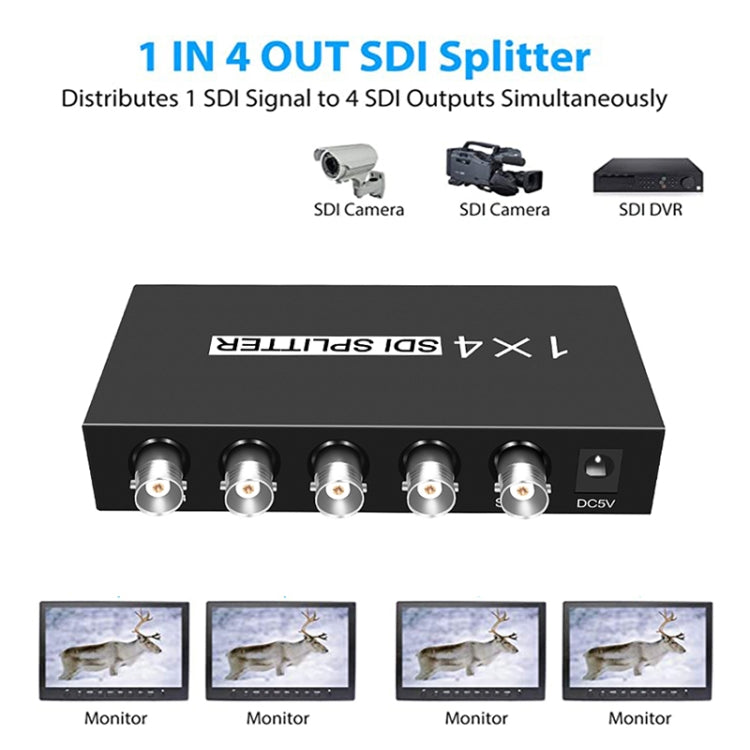

1. SDI distribution function: Connect the hardware as per the three "Installation steps", and the SDI splitter will commence normal operation. The SDI splitter is equipped to handle SD-SDI (270Mbps), high-resolution HD-SDI (1.485Gbps), and fully HD 3G-SDI (2.97 Gbps) video formats for SDI video distribution

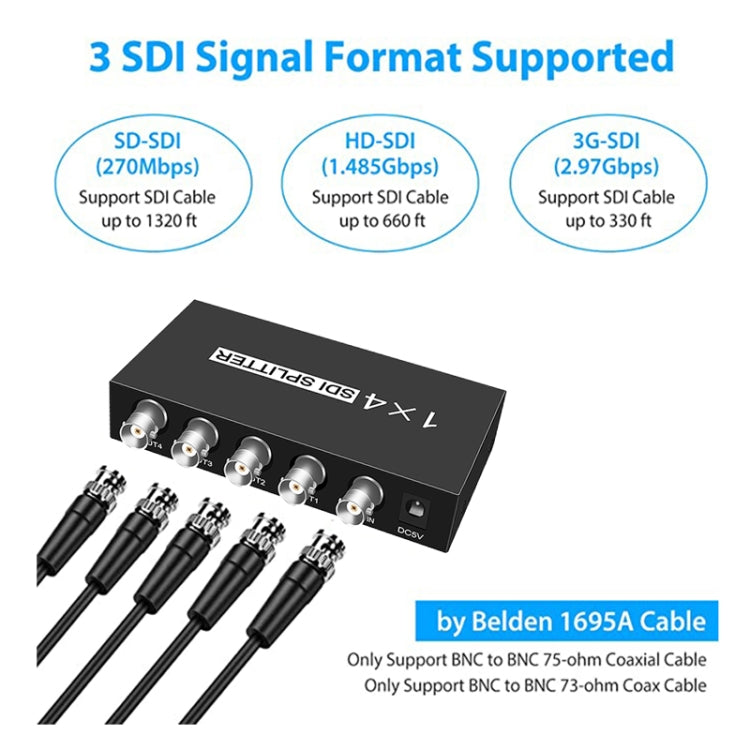

2. Extension function: This product accommodates cable lengths up to (Belden-1694A); SDI input and output range: SD supports up to 400m, HD supports up to 200m, and 3G supports up to 100m (theoretical value, actual distance may vary based on cable quality)

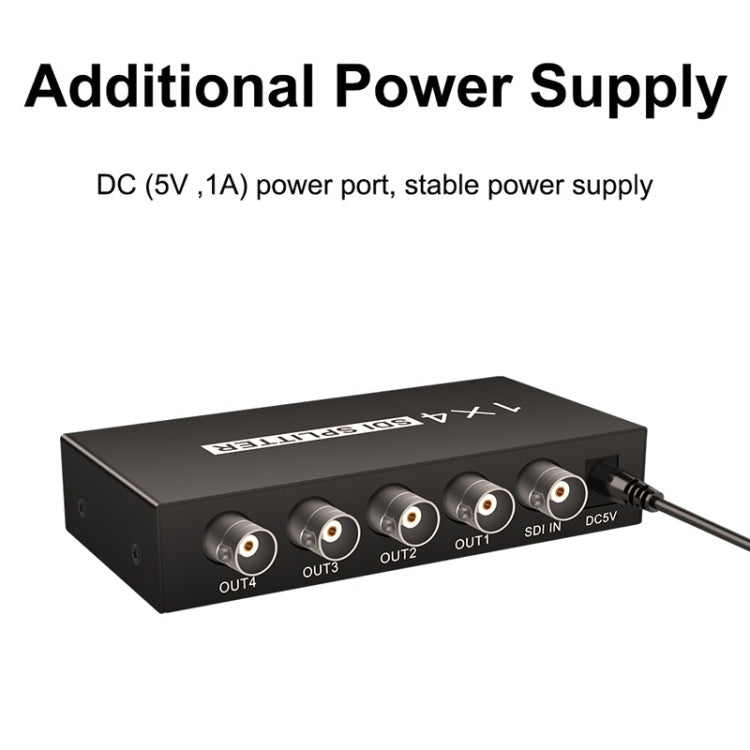

3. Wide voltage concept: integrated wide voltage design, supporting DC5V~36V voltage input (maximum power up to 2W)

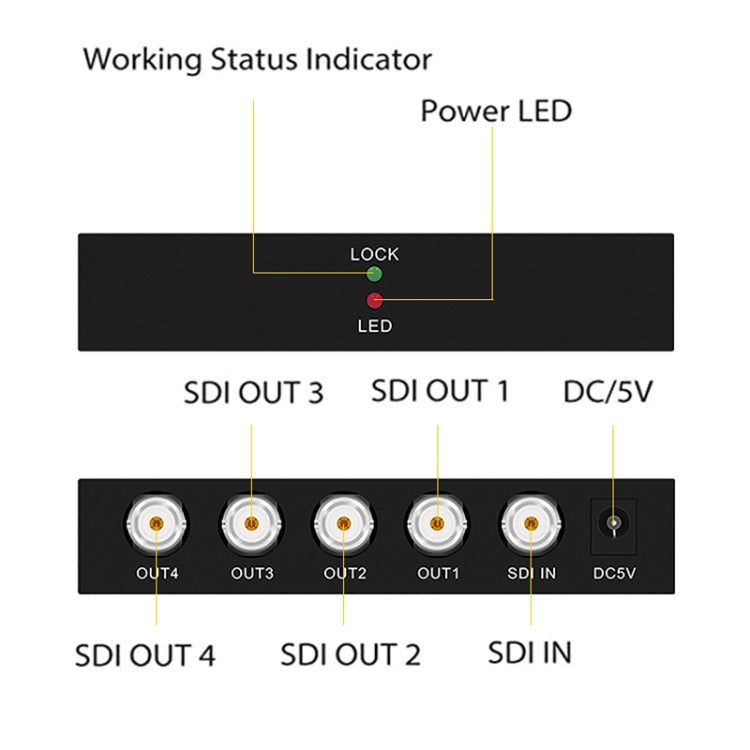

4. Intelligent design: It utilizes hardware-based processing to facilitate easy plug-and-play, and can automatically detect various SDI signals. When a valid SDI signal is present, the LED indicator lights up green. If there is no signal or if the signal does not meet the standard, the LED indicator will turn off, making it easier for engineers to diagnose issues.
2. Compatible SDI standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI signal format: SD-SDI HD-SDI 3G-SDI
4. Supported SDI transmission rates: 143-2970MB/S
5. SDI impedance: 75 Ohm
6. Resolutions supported: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI output signal amplitude: 800mVp-p
8. Dimensions: 116 x 59 x 23mm
Installation steps:
1. Connect the SDI input interface to the SDI signal source using a coaxial cable
2. The SDI output can be linked to other display devices that accept SDI signal input
3. Power on the device, and it will begin operation
Functional description:
1. SDI distribution function: Connect the hardware as per the three "Installation steps", and the SDI splitter will commence normal operation. The SDI splitter is equipped to handle SD-SDI (270Mbps), high-resolution HD-SDI (1.485Gbps), and fully HD 3G-SDI (2.97 Gbps) video formats for SDI video distribution
2. Extension function: This product accommodates cable lengths up to (Belden-1694A); SDI input and output range: SD supports up to 400m, HD supports up to 200m, and 3G supports up to 100m (theoretical value, actual distance may vary based on cable quality)
3. Wide voltage concept: integrated wide voltage design, supporting DC5V~36V voltage input (maximum power up to 2W)
4. Intelligent design: It utilizes hardware-based processing to facilitate easy plug-and-play, and can automatically detect various SDI signals. When a valid SDI signal is present, the LED indicator lights up green. If there is no signal or if the signal does not meet the standard, the LED indicator will turn off, making it easier for engineers to diagnose issues.
-
