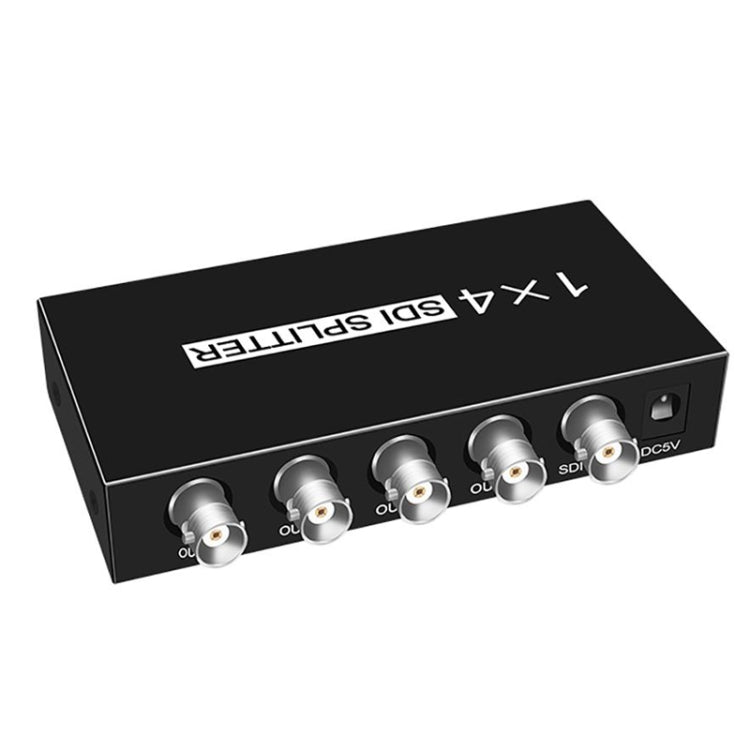

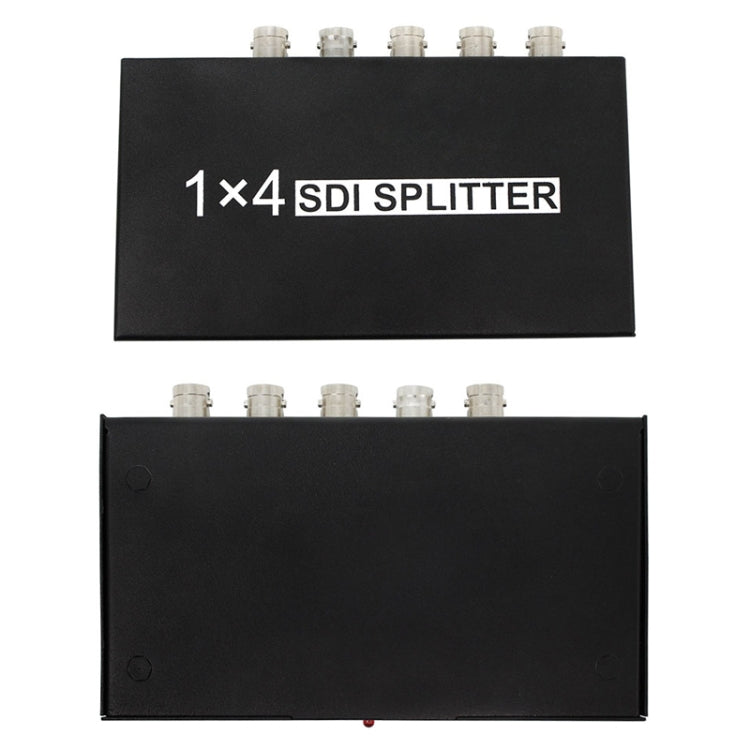

Rynx | 1 In 4 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (US Plug)
Rynx | 1 In 4 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter (US Plug)
In stock
- Free Shipping
Couldn't load pickup availability
2. Compatible SDI standards: SMPTE 424M, SMPTE 292M, and SMPTE 259M-C
3. SDI signal formats: SD-SDI HD-SDI 3G-SDI
4. Supported SDI rates: 143-2970MB/S
5. SDI impedance: 75 Ohm
6. Resolutions: 480i 60Hz / 576i 50Hz / 720P 50Hz / 720P 60Hz / 1080i 50Hz / 1080i 60Hz / 1080P 24Hz 25Hz 30Hz 50Hz 60Hz
7. SDI signal output amplitude: 800mVp-p

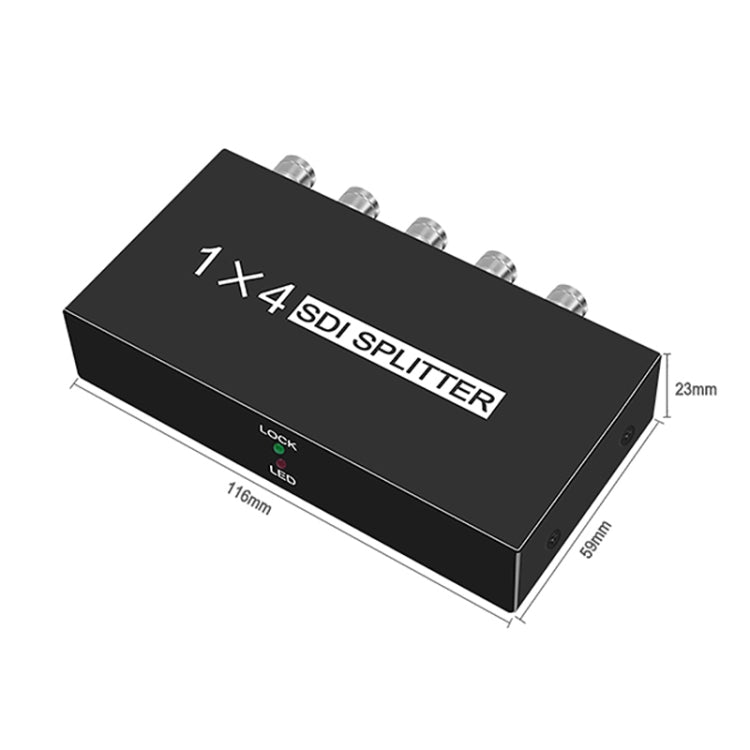

8. Dimensions: 116 x 59 x 23mm

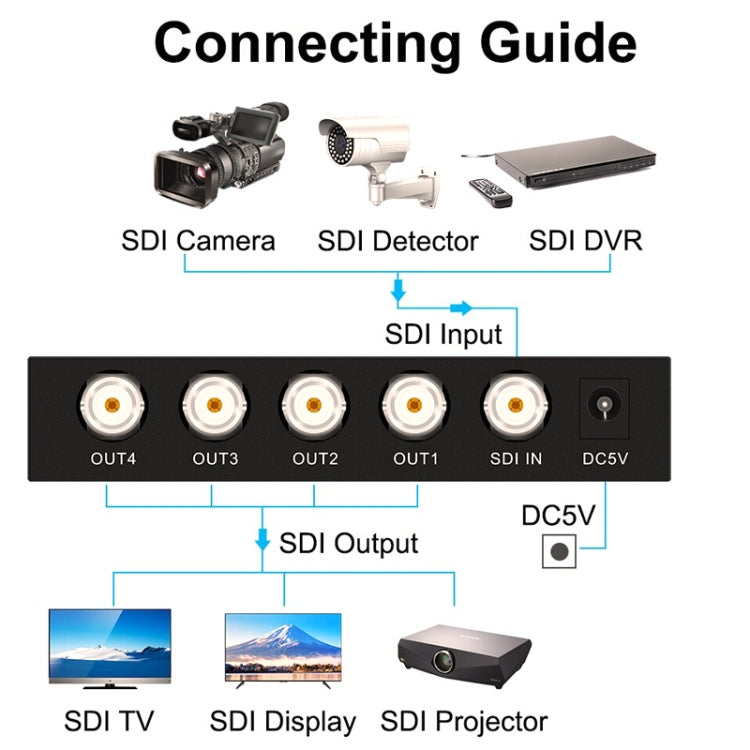

Installation steps:
1. Connect the SDI input interface to the SDI signal source using a coaxial cable.
2. SDI outputs can be linked to other display devices that support SDI input.
3. Power on the device, and it will start operating.
Function description:

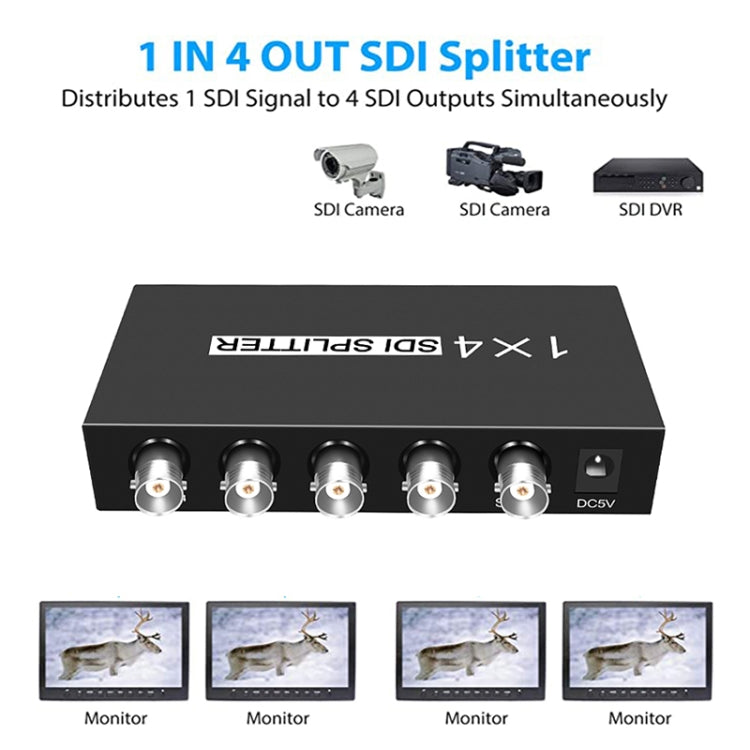

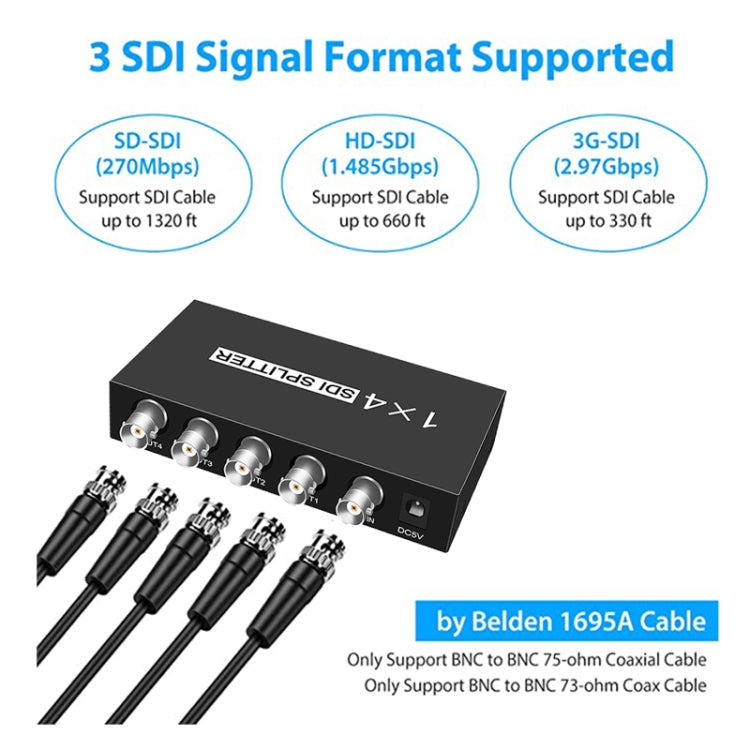

1. SDI distribution feature: Connect the hardware following the three "Installation steps" and the SDI splitter will function normally. The SDI splitter is compatible with SD-SDI (270Mbps), high-definition HD-SDI (1.485Gbps), and full HD 3G-SDI (2.97 Gbps) video formats, facilitating SDI video distribution.
2. Expansion capability: This product accommodates cable lengths up to (Belden-1694A); SDI input and output distances: SD supports 400m, HD supports 200m, and 3G supports 100m (theoretical value, actual distance depends on cable quality).

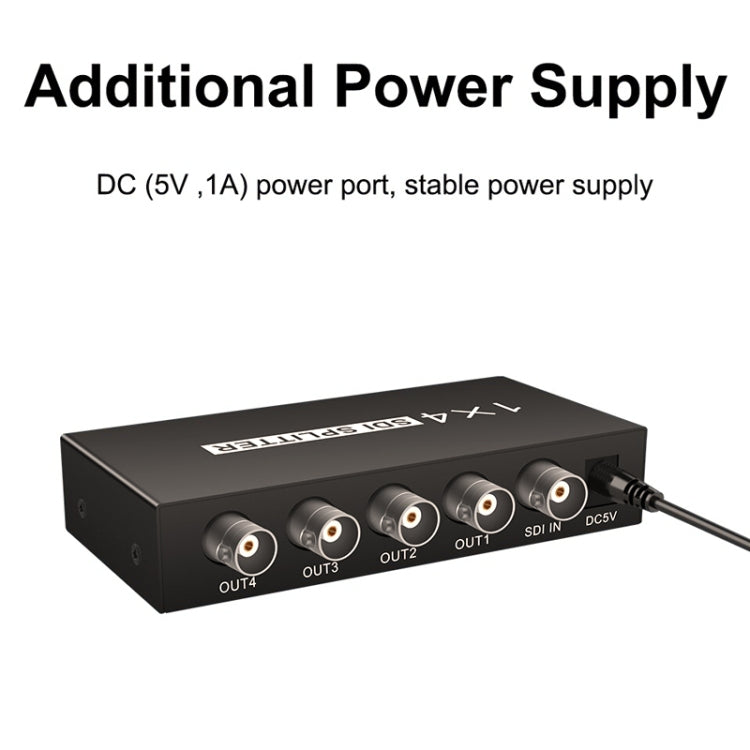

3. Wide voltage design: features an integrated wide voltage design that supports DC5V~36V voltage input (with power up to 2W).

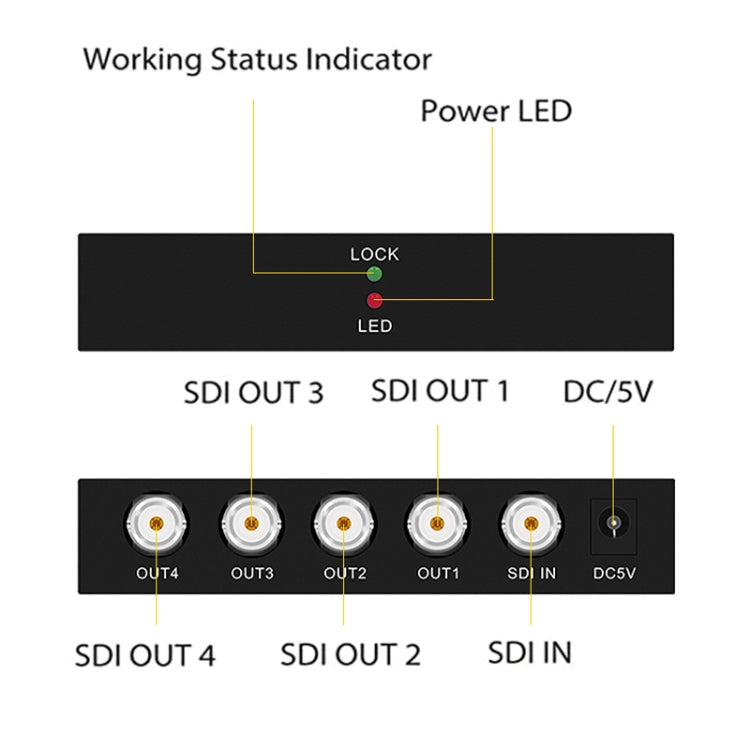

4. Intelligent design: It utilizes pure hardware processing, is plug-and-play capable, and can automatically recognize various SDI signals. When a valid SDI signal is detected, the LED indicator shows green. If there is no signal or the signal does not meet the standard, the LED indicator turns off, making it easier for engineers to diagnose the issue.
