Rynx | 10Pcs SG90 9g Micro Servos for RC Robot Helicopter Plane Control Car Boat
Rynx | 10Pcs SG90 9g Micro Servos for RC Robot Helicopter Plane Control Car Boat
In stock
- Free Shipping
Couldn't load pickup availability

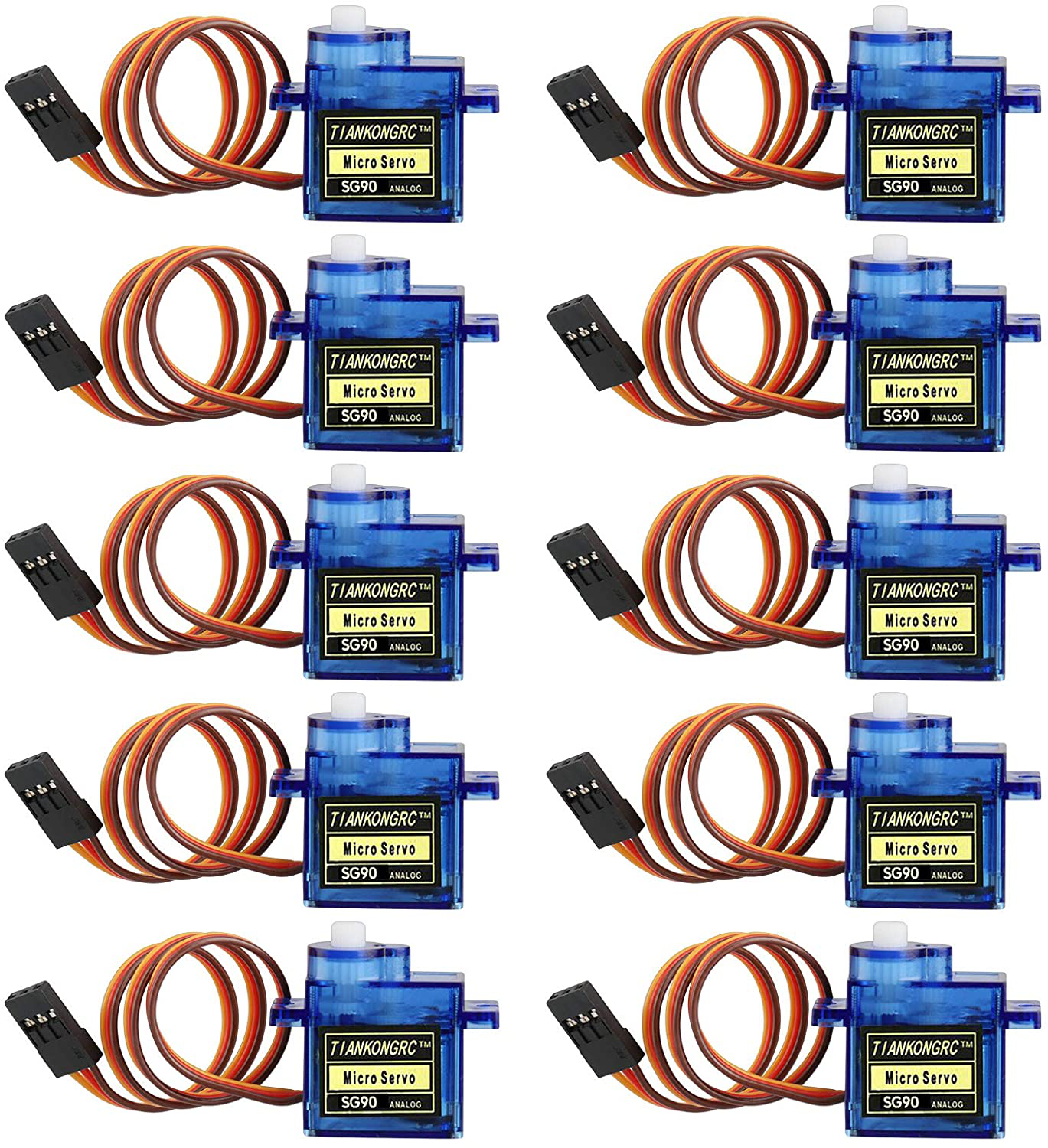

10 Pieces of SG90 9g Micro Servos for RC Robots, Helicopters, Planes, Cars, and Boats
Features:
- High quality with great cost efficiency.
- Operating speed: 0.1 seconds/60 degrees (4.8V no load)
- Operating voltage: 4.8-6V
- Compact and lightweight design.
- Applications: Suitable for wings, helicopters, drones, gliders, small robots, robotic arms, and other models.
This type of micro servos can be utilized for helicopters, planes, cars, and boats. It offers high quality and is cost-effective. Additionally, it is lightweight and compact. I believe this will prove to be a valuable tool for you.
Specifications:
Model: SG90
Weight: 9g
Torque: 1.8kg/cm
Operation speed: 0.1 sec/60 degrees
Operating voltage: 4.8V
Temperature range: 0℃ ~ +55℃
Deadband width: 10us
Maximum rotation angle: 180 degrees
Gear material: nylon
Operating mode: Simulation

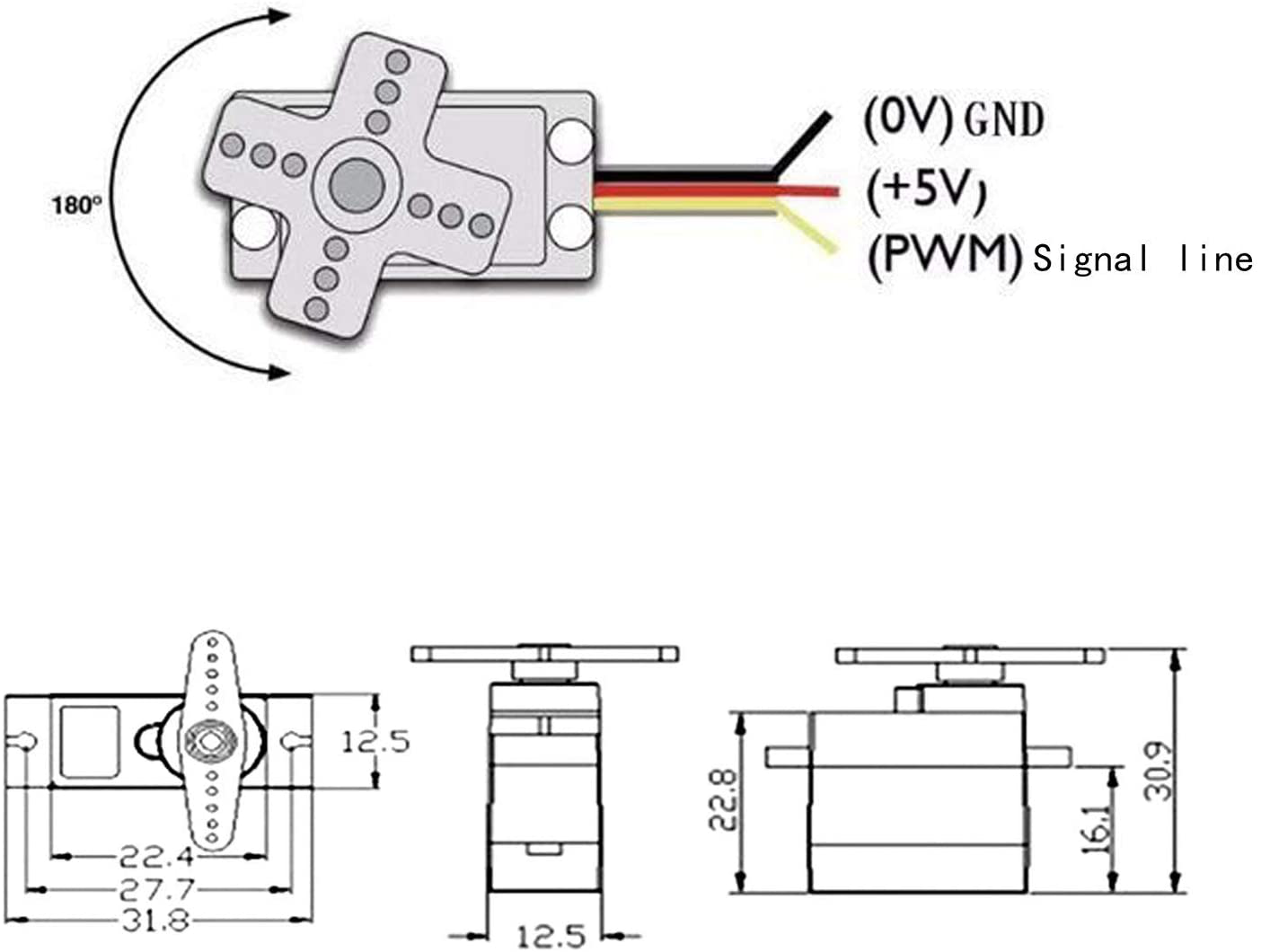

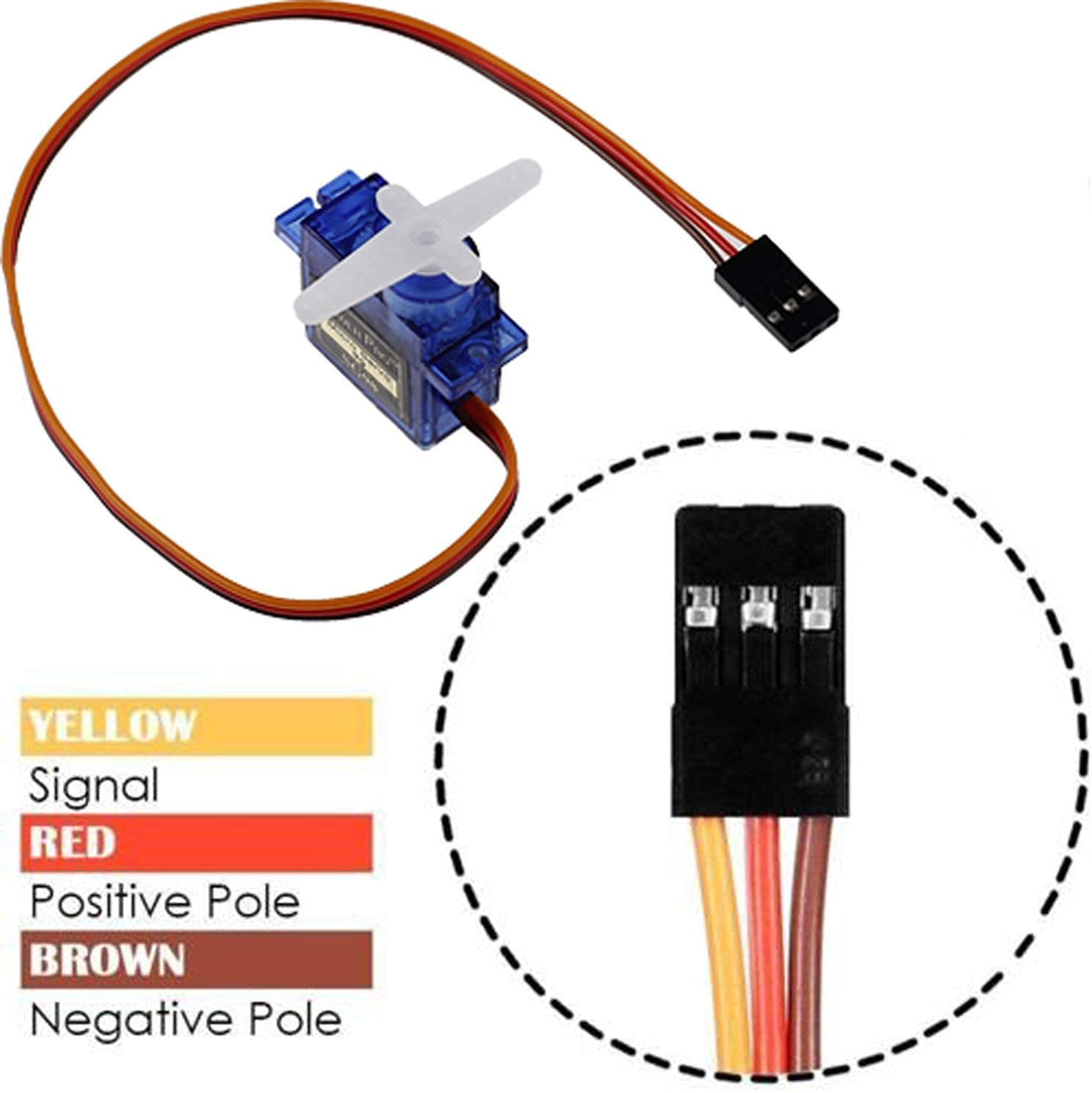

Circuit connections:
Yellow wire (signal wire)
Red wire (power wire)
Brown (ground)
The package includes:
4* SG90 9g Micro Servos
How to connect the SG90 micro servo to an Arduino Uno?
The connection to Arduino is very straightforward. The servo motor has three wires. The brown wire is the ground, which connects to the Arduino ground.
The red wire is VCC, which typically requires a voltage between 4.8 to 7.2 volts. Therefore, connect it to the Arduino 5V.
The last wire, the orange one, is the control signal which must be a PWM signal with a period of 20 milliseconds, also known as 50 Hertz
and a duty cycle of 1 to 2 milliseconds, meaning 5 to 10 percent.
A pulse width of 1 millisecond corresponds to the -90° position of the motor shaft, 1.5 milliseconds represents the 0° position, and
2 milliseconds represents the +90° position. This indicates that you can rotate the shaft a total of 180°.
The package includes:
- One (1) set of 10 Pieces SG90 9g Micro Servos for RC Robots, Helicopters, Planes, Cars, and Boats
