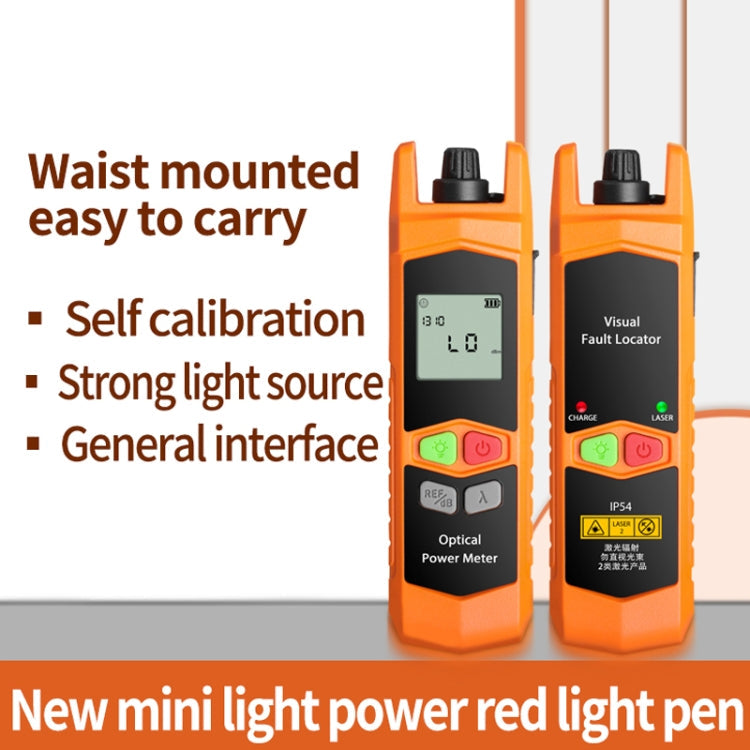

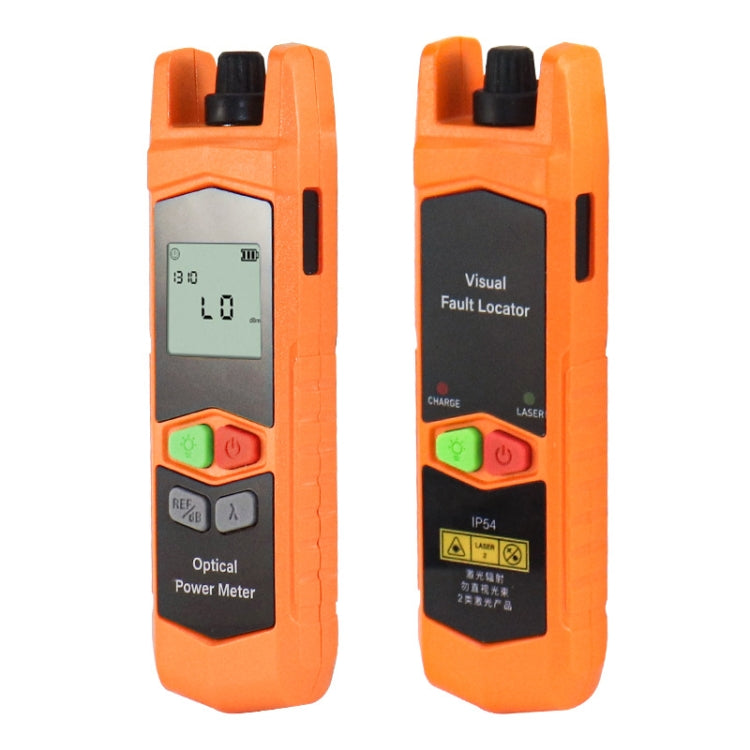

Rynx | 2-in-1 10-30mW fiber optic red light pen + optical power meter (-70+6dBm) set
Rynx | 2-in-1 10-30mW fiber optic red light pen + optical power meter (-70+6dBm) set
In stock
- Free Shipping
Couldn't load pickup availability

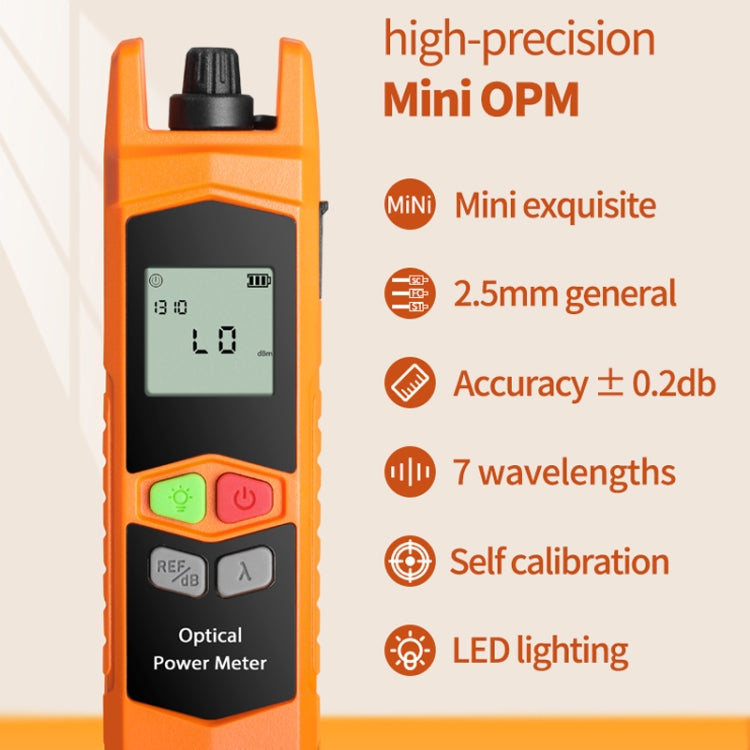

Optical Power Meter:

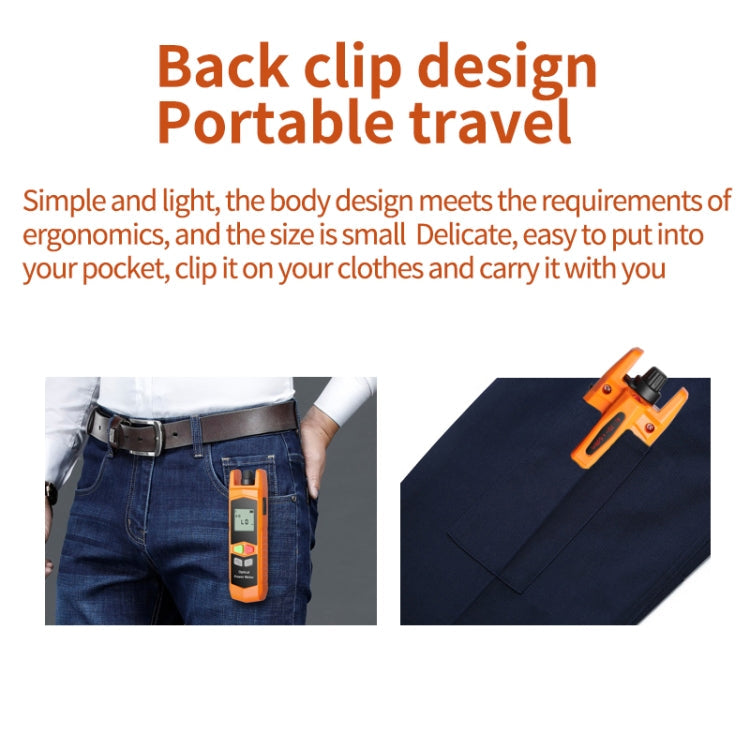

1. Compact and portable: The device is designed with ergonomic considerations, and its small size makes it easy to store in a bag or attach to clothing, allowing for convenient transport at any time.

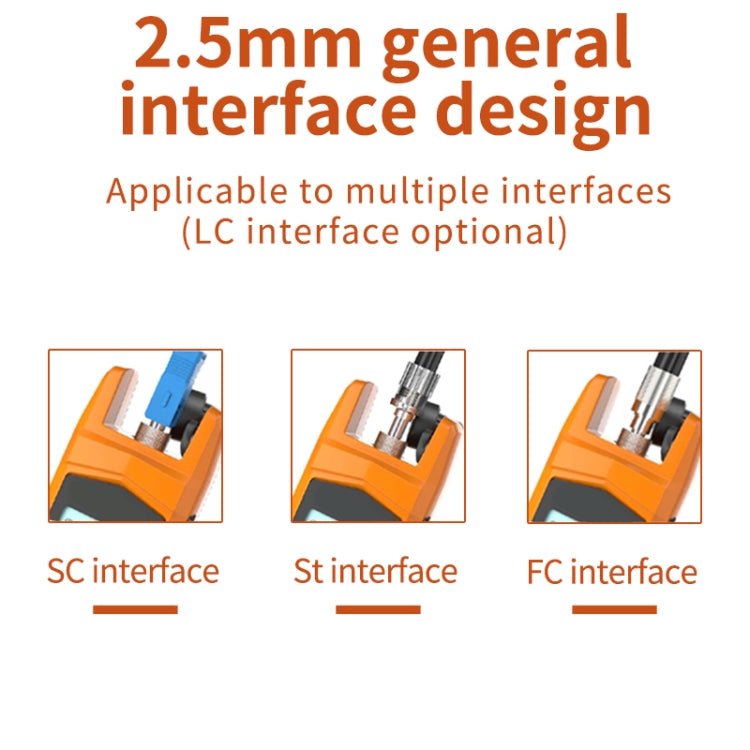

2. Universal connector with a diameter of 2.5mm, compatible with various interfaces such as SC/ST/FC.

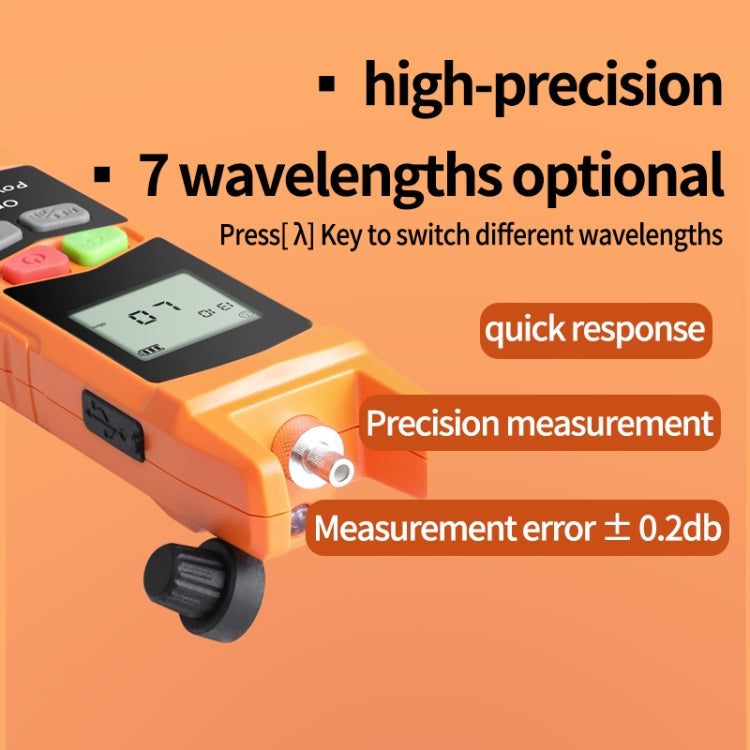

3. High measurement accuracy with a rapid response time, measurement error of +/-0.2dB.
4. Supports 7 wavelengths: 850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm.

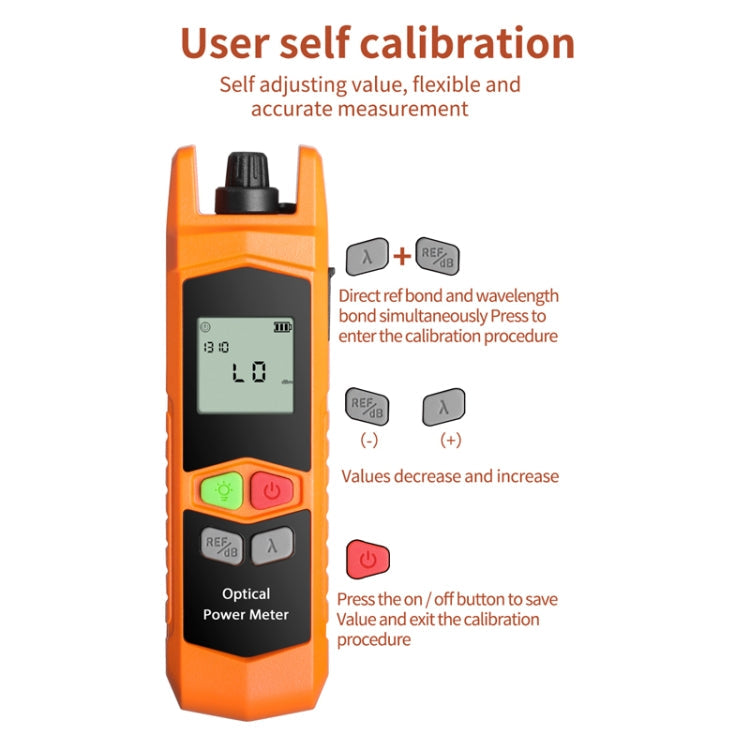

5. User-friendly self-calibration and value adjustment, offering flexible and precise measurements.
6. LED illumination that facilitates easy inspection of cable connections in dim environments, enhancing work comfort.
7. Sensor type: InGaAs.
8. Power range: -70 to +10dBm/-50 to +26dBm.
9. Uncertainty: less than 0.2dB.
10. Display resolution: 0.01dB.
11. Operating temperature: -10 to +60 degrees Celsius.
12. Storage temperature: -25 to +70 degrees Celsius.
13. Battery life: 20 hours (requires 2 x 1.5V AAA batteries, batteries not included).
14. Dimensions/Weight: 127×36.5×28mm/61g.

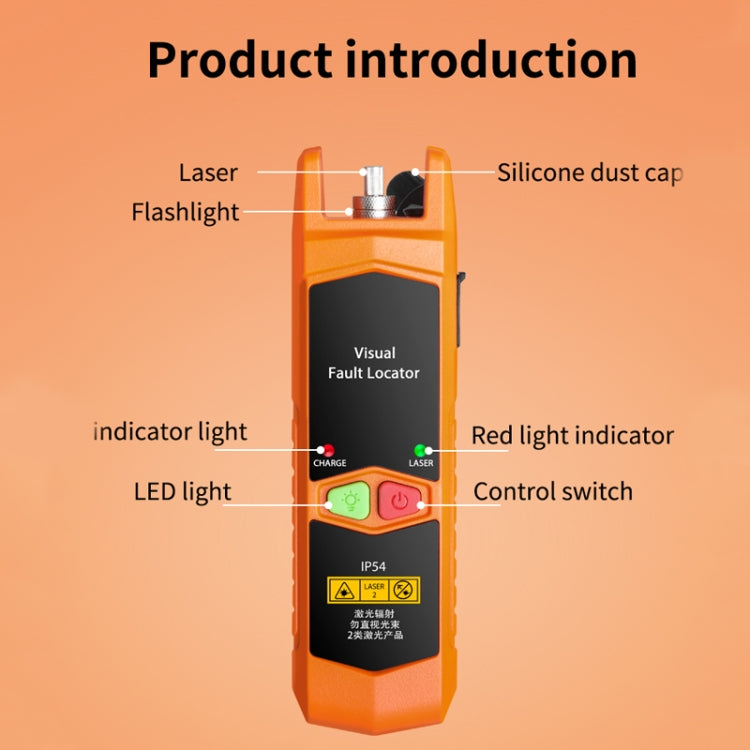

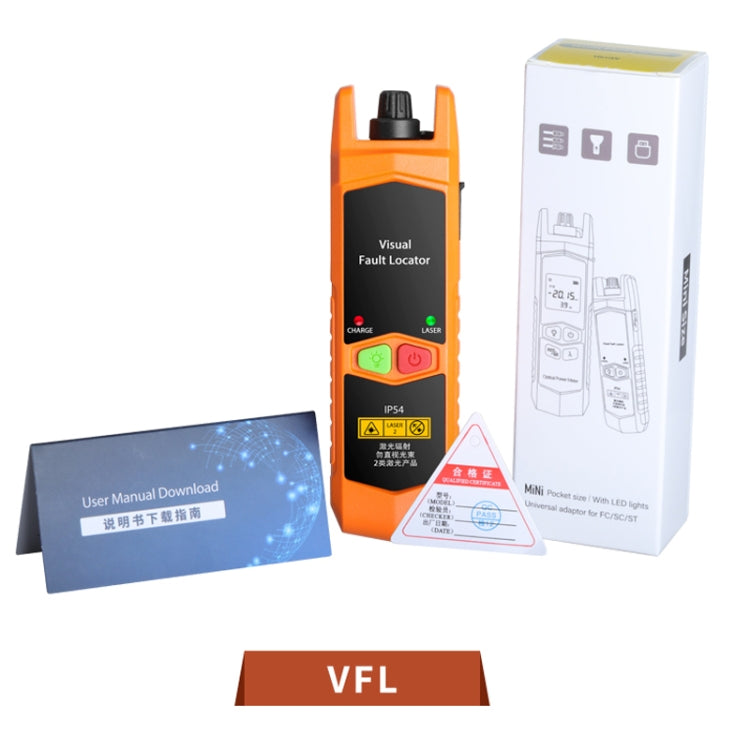

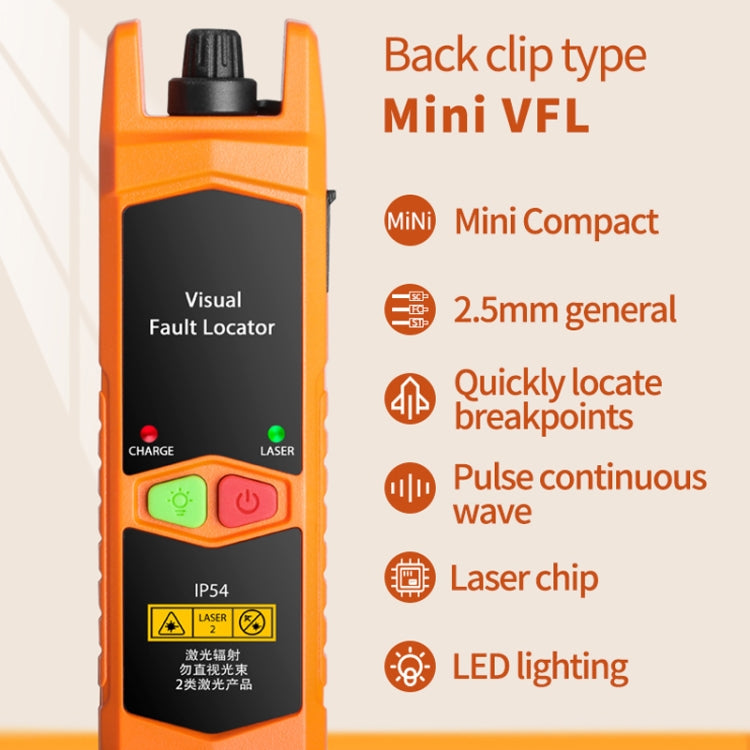

Red Light Fault Locator:
1. Compact and high-quality, featuring a ceramic-coated ferrule and LED illumination.
2. 2.5mm universal connector, suitable for various interfaces such as SC/ST/FC.
3. Wavelength range: 650nm red laser head.
4. Power levels: 10/20/30mW.
5. Testing distances: 5-8km/12-15km/20-25km.
6. Laser type: LD.
7. Modulation frequency: CW/2Hz.
8. Power supply: 2 x AAA batteries (batteries not included).
9. Dimensions: 127 x 36.5 x 28mm.
10. Operating temperature: 61g.
