Rynx | DTECH DT-5119 0.5 m USB to RS485/422 Industrial Converter Serial Line Communication Adapter
Rynx | DTECH DT-5119 0.5 m USB to RS485/422 Industrial Converter Serial Line Communication Adapter
In stock
- Free Shipping
Couldn't load pickup availability
2. Material: ABS.
3. Cable Structure: 24AWG wire, 80 braided tinned copper strands + aluminum foil for dual shielding + four pull wires + 7 conductors + 8mm thick cable sheath, fully shielded environment.
4. Chip: FTDI-FT232RL + SP485 dual chip.
5. Operating Mode: Asynchronous half-duplex communication, asynchronous full-duplex communication.
6. USB Signal: VCC, DATA+, DATA-, GND.
7. RS-485/RS-422/DB9 Pin Signal: T/R+, T/R-, GND.

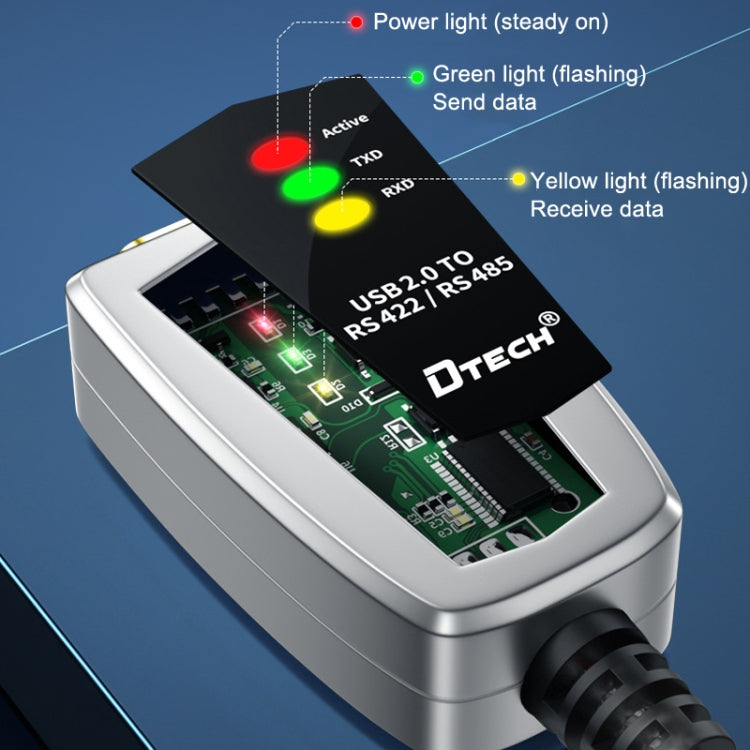

8. Signal Indicators: Red light for power, green light for transmit signal, yellow light for receive signal.
9. Communication Rate: 300bps-460800bps, automatic detection of serial port signal rate.
10. Communication Distance: Approximately 0-5 meters at the USB end; about 0-1200 meters at the RS-485/RS-422 end.
11. Number of Connectable Nodes: Supports 32 RS-485/RS-422 devices.
12. Communication Modes: RS-485 point-to-point half-duplex communication, RS-485 point-to-multipoint half-duplex communication, RS-422 point-to-point full-duplex communication, RS-422 point-to-multipoint full-duplex communication.
13. Protection Class: About 15kV IEC1000-4-2 air discharge.
14. Surge and Overvoltage Protection: 600W lightning protection.
15. Connection Method: Terminal devices can be connected via twisted pairs or shielded cables.
16. Transmission Medium: Twisted pairs or shielded cables.
17. Supported Systems: Windows 10/8/8.1/7, Server 2008, XP, Vista, Mac OS 8/9, OS-X, Linux 2.4, and other systems.
18. Power Supply Mode: USB powered.
19. Voltage Range: 5V.
20. Operating Current: Less than 300mA.
21. Application Scenarios: Industrial automation systems, access control systems, power control systems, parking systems, time attendance systems, industrial computers, PLC controllers, etc.
22. Weight: Approximately 70g.

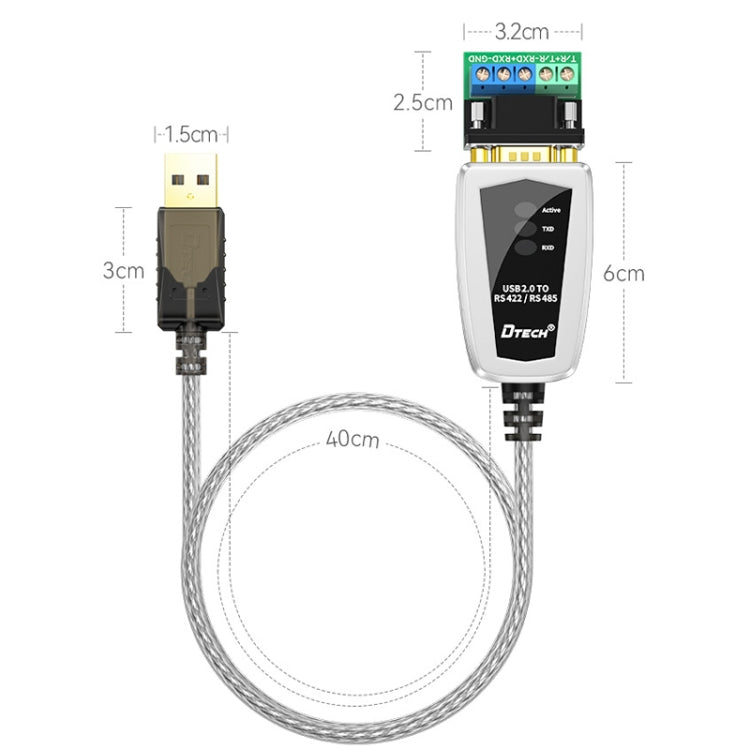

23. Length: About 0.5m.
Features:

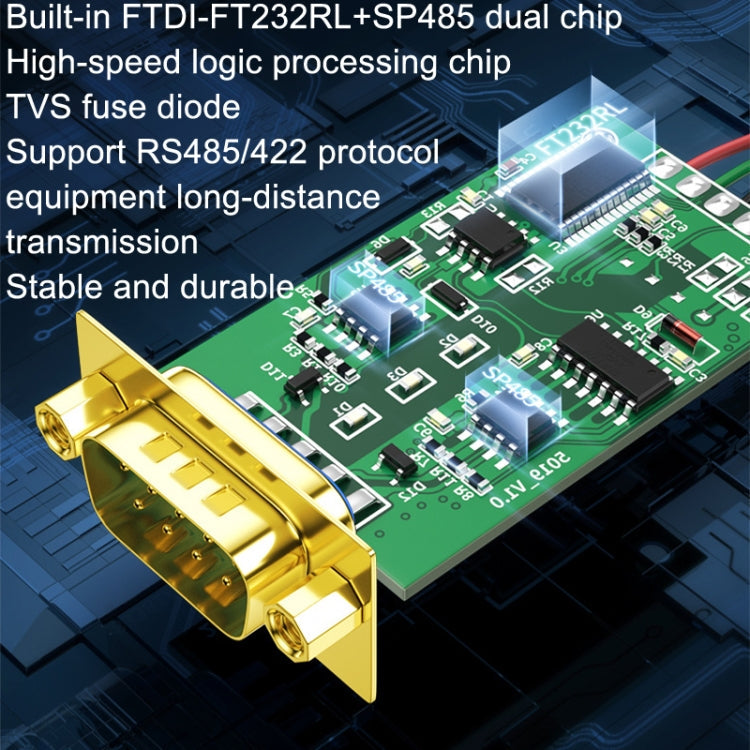

1. Integrated with FTDI-FT232RL + SP485 dual chip, high-speed logic processing chip, TVS protection diode, designed for long-range transmission of RS485/422 protocol devices, stable and durable.

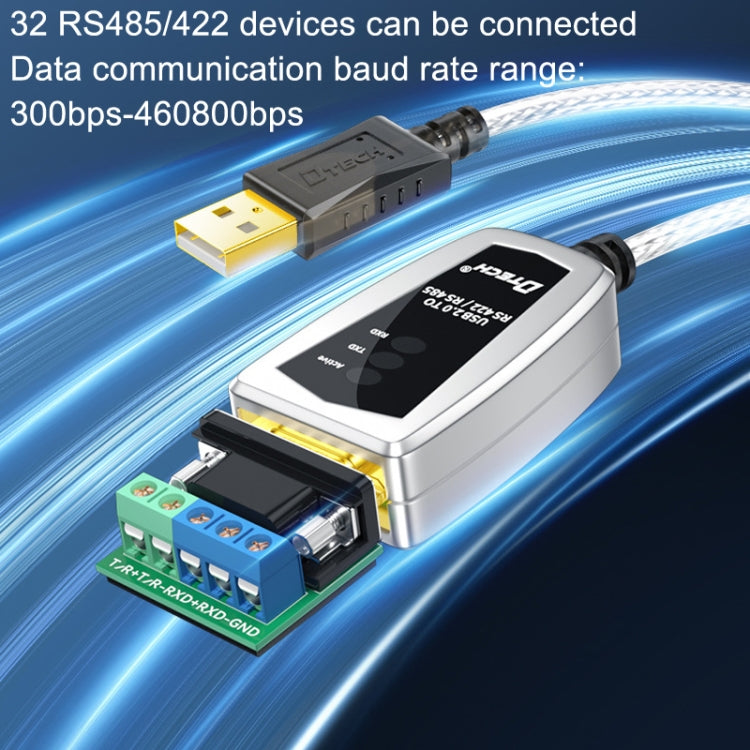

2. Can connect 32 RS485/422 devices, with a baud rate range for data communication of approximately 300bps-460800bps.
3. Wide application range, suitable for linking computers with various RS485/422 devices, enabling bidirectional interactive data transfer.

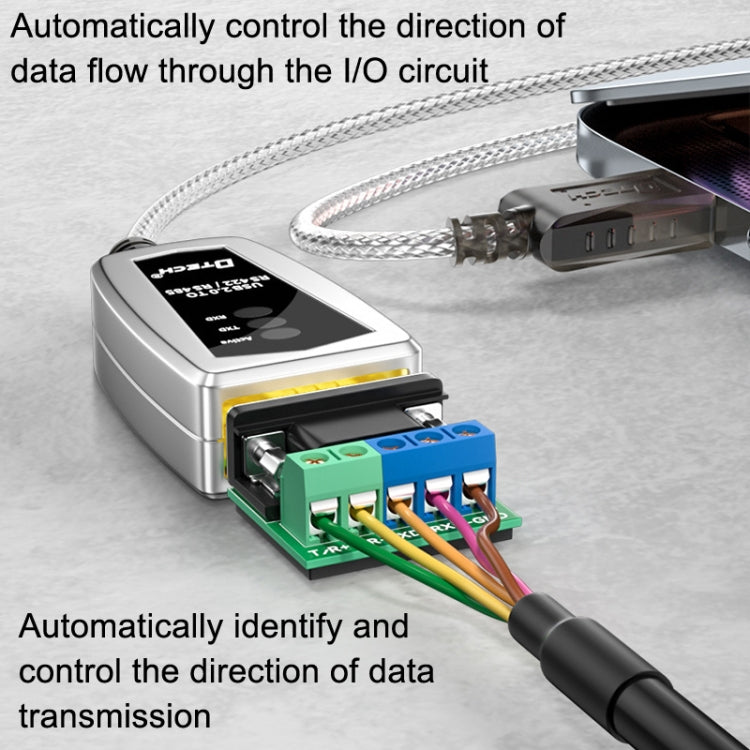

4. Automatic flow direction control of data through the I/O loop, autonomously determining and managing the direction of data transmission.
5. Built-in zero-delay automatic sender-receiver converter, automatically detecting the serial port signal rate.

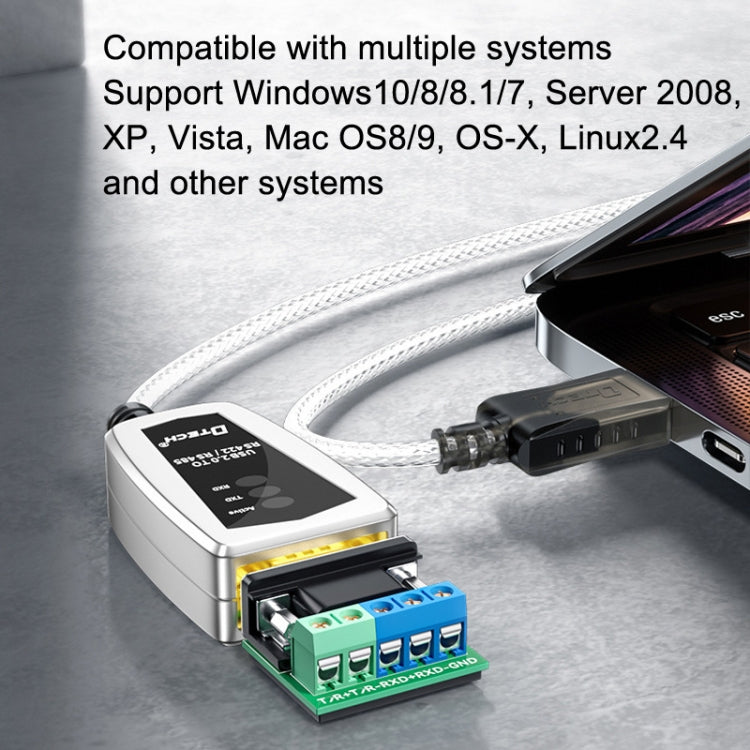

6. Diverse system compatibility, supporting Windows 10/8/8.1/7, Server 2008, XP, Vista, Mac OS 8/9, OS-X, Linux 2.4, and more systems.
7. Safety lightning protection and overvoltage protection.
8. Comes with three types of data indicators for easy monitoring of operational status.
9. Utilizes 24AWG thick 80 braided tinned copper core, tightly shielded inside and out, to enhance protection against electromagnetic interference.
