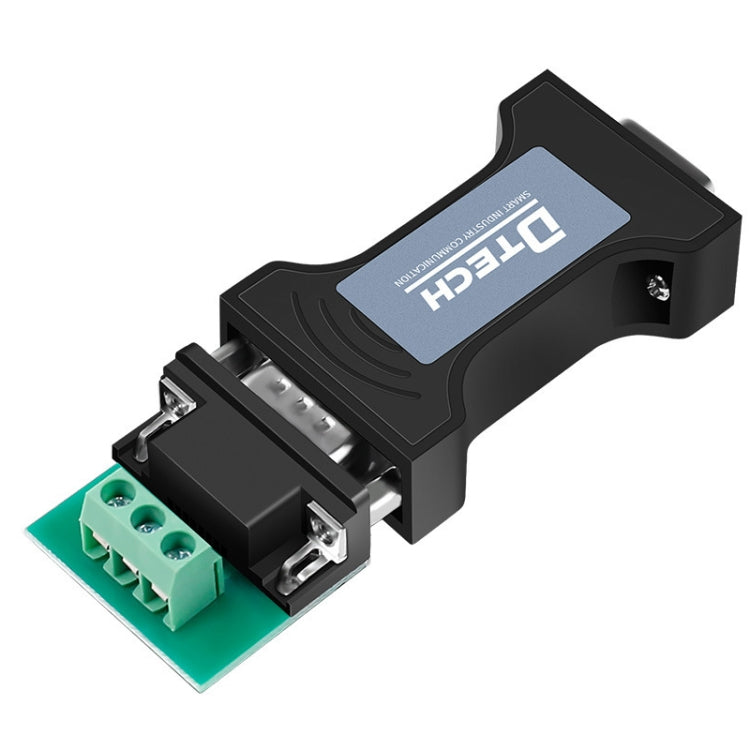

Rynx | DTECH DT-9005 Without Power Supply RS232 to TTL Serial Port Module, Interface: 3.3V Module
Rynx | DTECH DT-9005 Without Power Supply RS232 to TTL Serial Port Module, Interface: 3.3V Module
In stock
- Free Shipping
Couldn't load pickup availability
1. Interface Compatibility: RS232, TTL
2. Material: ABS
3. Transmission Mode: asynchronous, full duplex, complete transparency
4. ESD Protection: approx. 15KV ESD
5. Application Scope: PC, terminal equipment, industrial control, digital instrument acquisition, multi-serial port devices, serial interfaces of microcontrollers, etc.
6. Transmission Rate: 300bps-115.2kbps
7. Transmission Medium: twisted pairs/shielded wiring

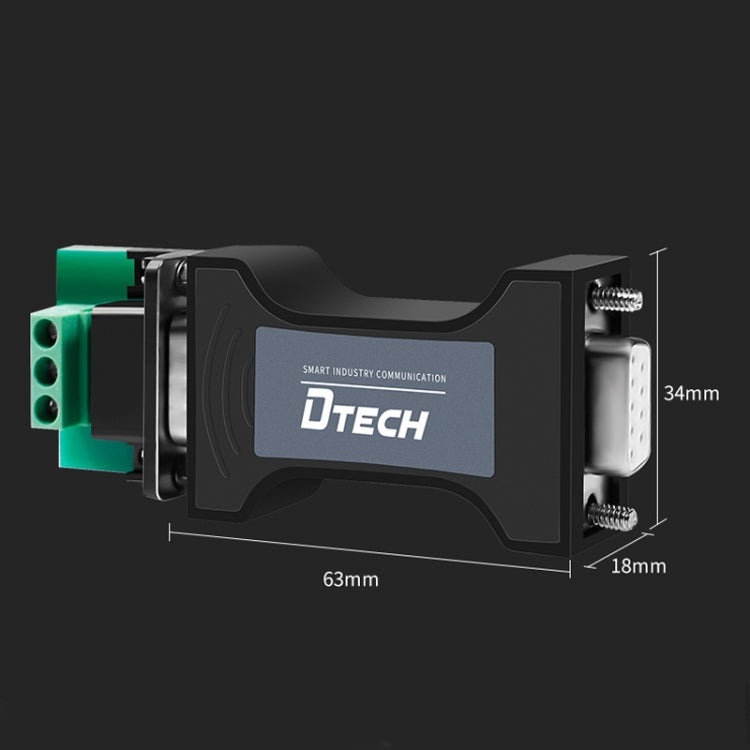

8. Dimensions: approximately 6.3 x 3.4 x 1.8 mm
Features:

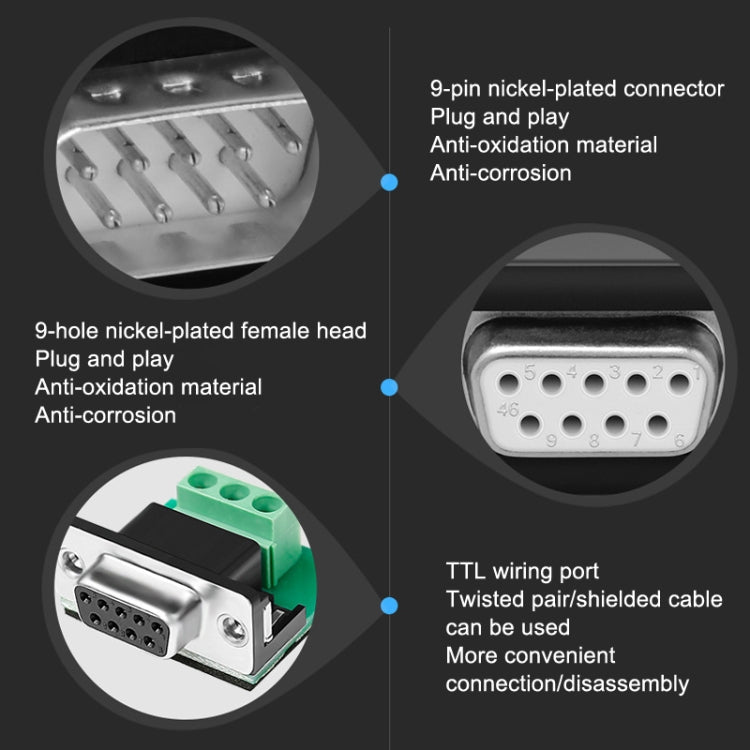

1. 9-pin gold-plated connector/female, resistant to pull-out, made from anti-oxidative material, corrosion-resistant
2. TTL interface port capable of using twisted pair/shielded cables, facilitating connection/dissociation
3. Eco-friendly material, safe for use
4. Integrated overvoltage protection protector TVS for quick transients

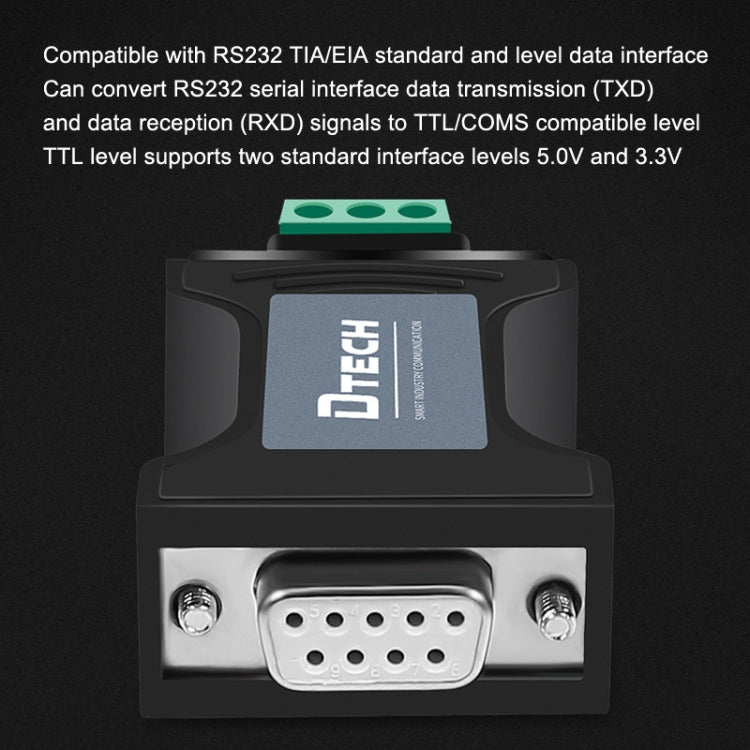

5. Complies with the RS232 TIA/EIA standard and data interfaces, can convert RS232 serial interface data transmission (TXD) and reception (RXD) signals into TTL/COMS compatible levels, supporting two standard TTL levels: 5.0V and 3.3V

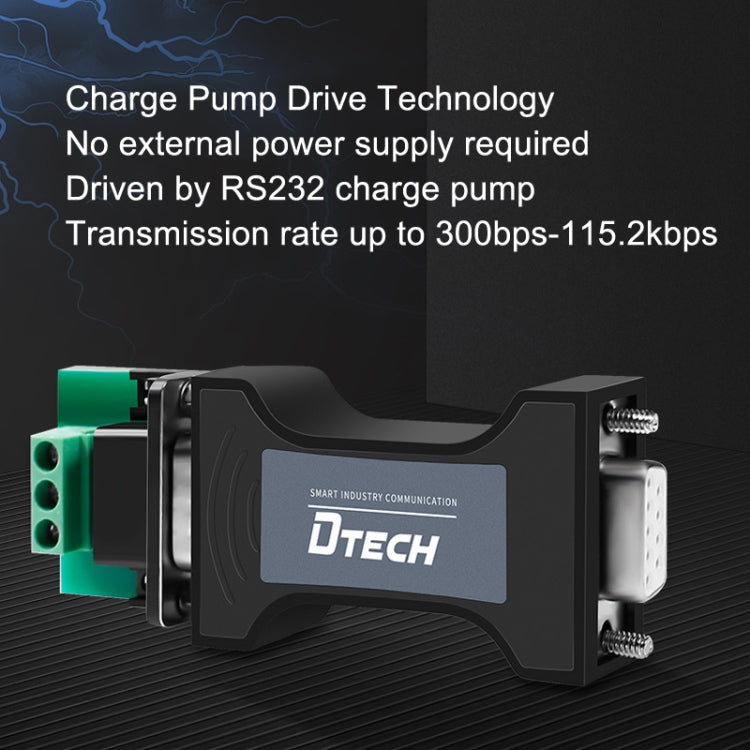

6. Charge-pump drive technology, requiring no external power supply, utilizes RS232 charge pump drive, which allows a transmission rate of 300bps to 115.2kbps

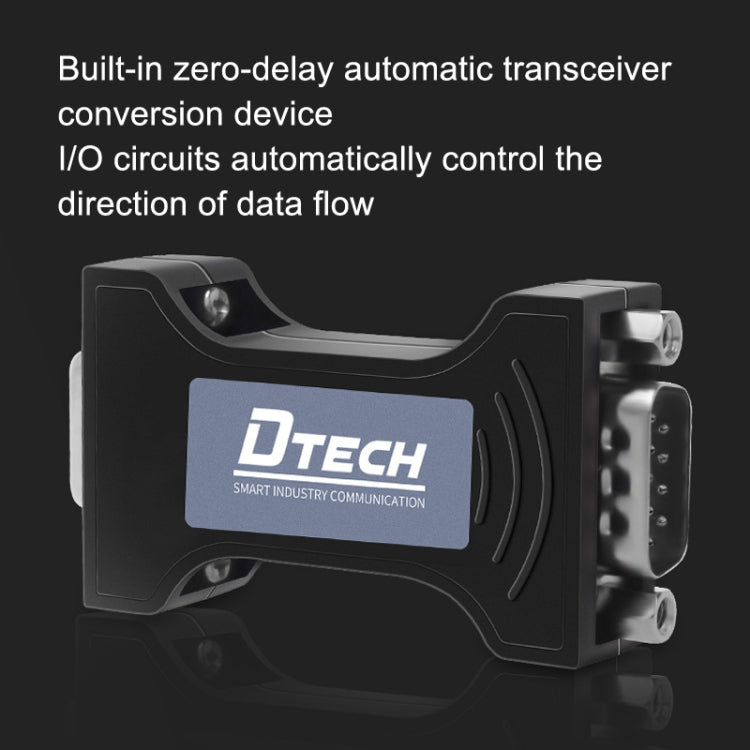

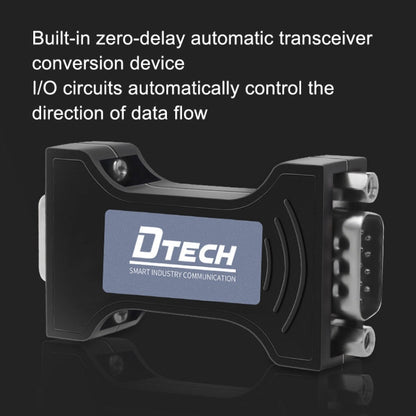

7. Built-in zero-delay automatic transmitter-receiver conversion arrangement
8. The I/O circuit automatically manages the direction of data flow
