Rynx | HDMI Audio Return Channel & DAC Audio Converter

Introduction：

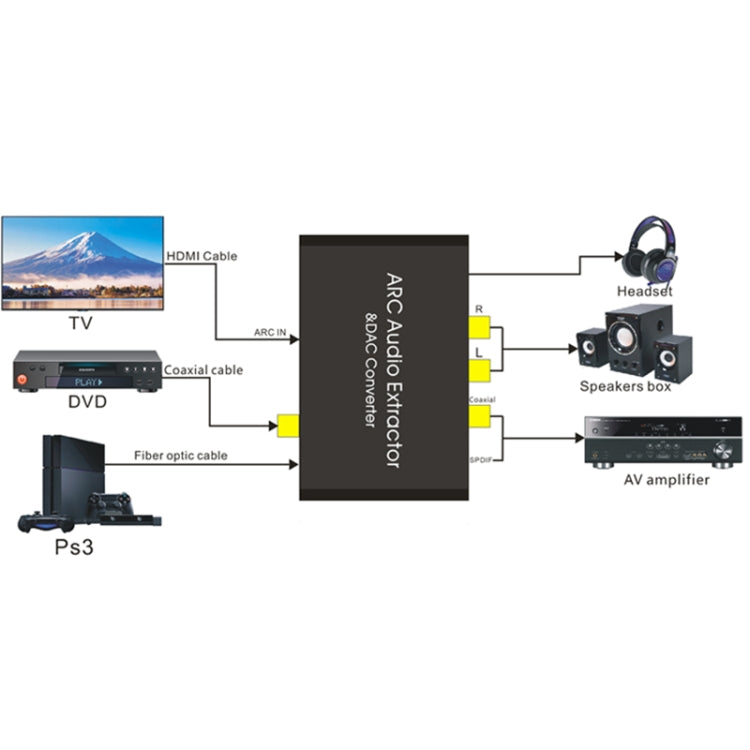

This HDMI audio return and DAC audio converter allows the sound from a television equipped with ARC functionality to be sent back through the HDMI/ARC port to the optical fiber, coaxial, or 3.5mm headphone jack of the adapter. It facilitates the conversion of optical or coaxial digital audio signals, which can be output as stereo analog signals simultaneously, resolving the issue of connecting televisions without audio output ports to an audio system. This product is perfect for home theaters, schools, training facilities, conference rooms, electronics stores, and various other applications.

Features:
1. Supports HDMI ARC, optical fiber, and coaxial input selection
2. Concurrent support for optical, coaxial, RCA stereo, and 3.5mm stereo headphone audio output
3. The 3.5mm headphone jack is equipped with a powerful audio amplifier
4. Supports transmission of 192KHz audio sampling rate
5. The optical and coaxial connections support 5.1 channel transmission (signal passthrough)
6. Volume for the ARC and 3.5mm headphone output can be controlled by the television (CEC)

Specifications:

Material: Aluminum alloy
Power supply connection: Micro USB
Maximum operating current: 100MA
Operating temperature: -10~+55℃
Storage temperature: -20~+60℃
Operating humidity: 10~90%RH (non-condensing)
Storage humidity: 5~95%RH (non-condensing)
