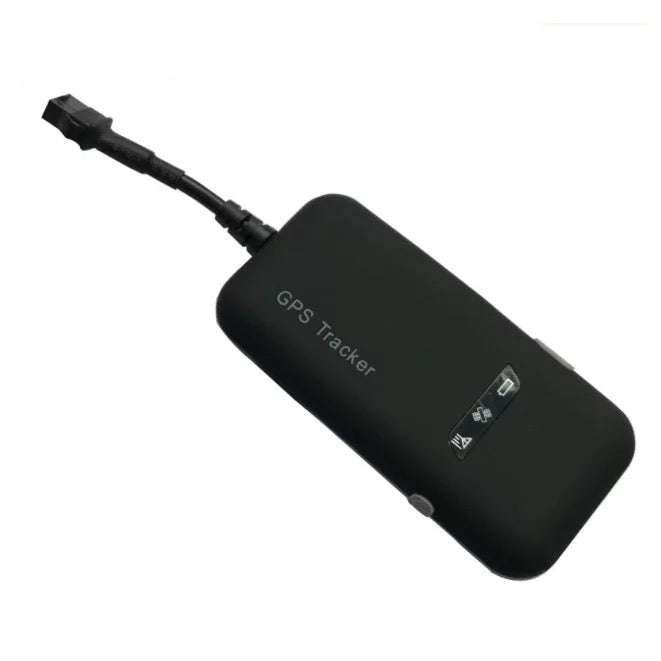

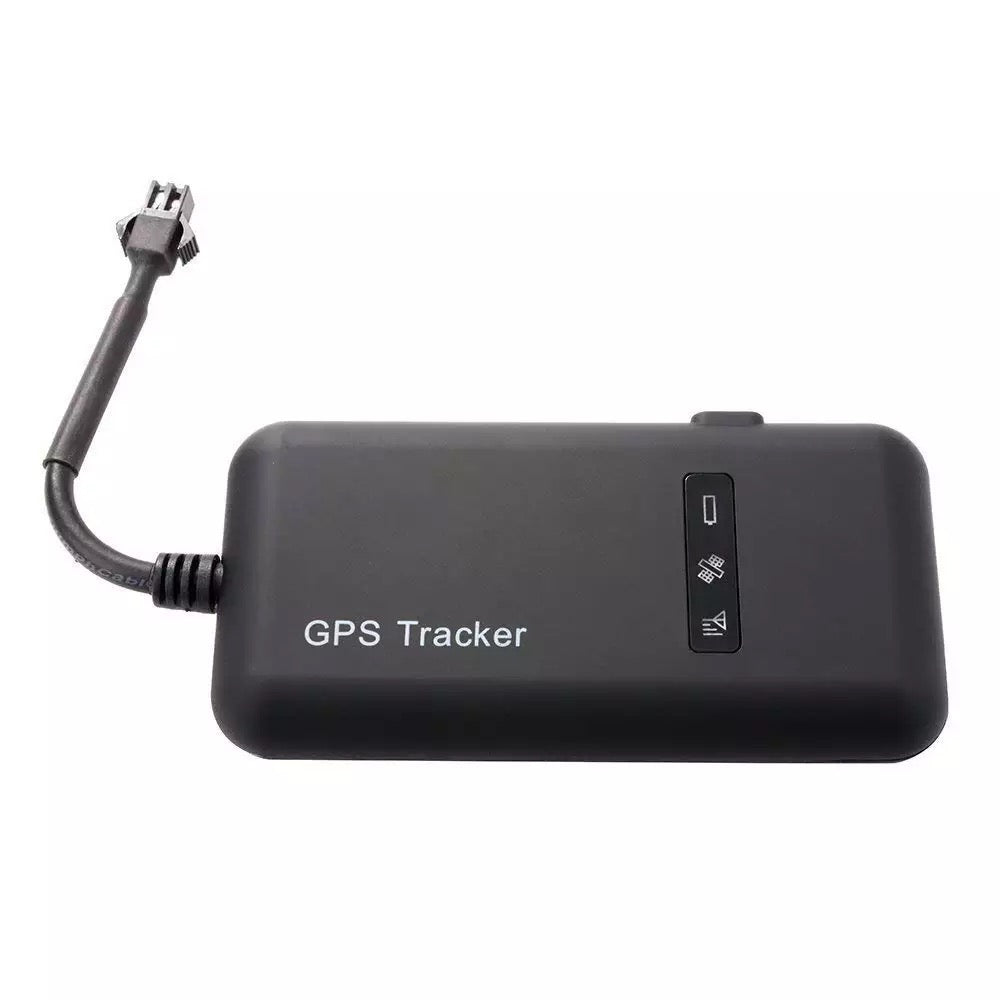

The original GT02A GPS tracker is the top choice for vehicle tracking. To utilize the tracker, you will need a SIM card from a GSM provider that can send and receive SMS, and provides internet access via GPRS/EDGE. Ensure that the PIN lock is disabled. The device itself needs to be connected to the vehicle's electrical system.

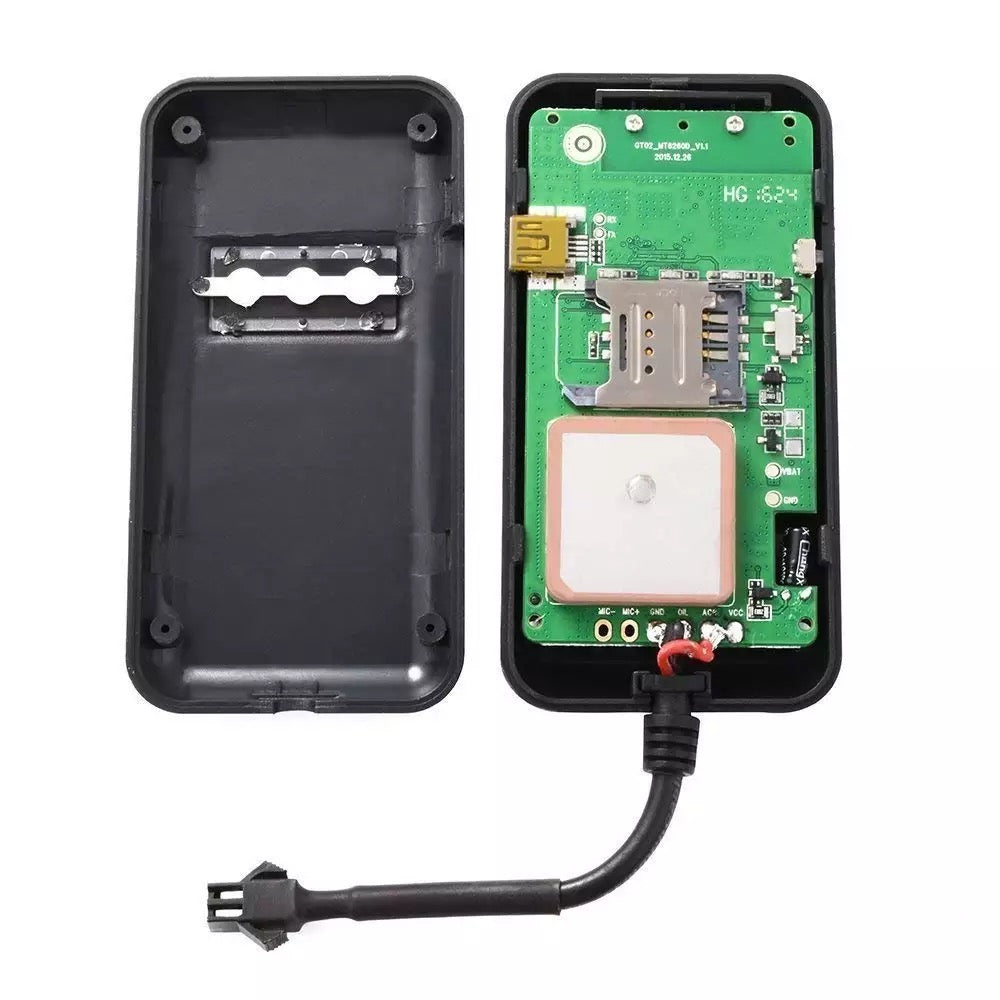

You must unpack the tracker and insert a SIM card (for 5 photos) without a PIN code. You will send it the settings via SMS, and the details will be transmitted over the internet for online location tracking of the vehicle.

Instructions for all included codes are attached.

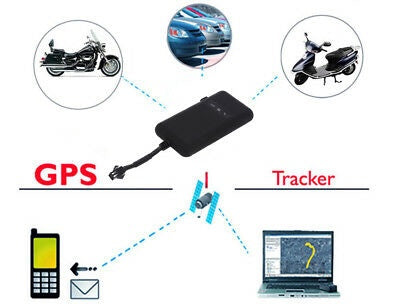

The tracker determines its location via signals from GPS satellites and relays this information through SMS messages to your smartphone.

For real-time tracking and online monitoring, various free internet platforms (livegpstracks.com) are utilized. These platforms provide coordinates, movements, routes, mileage, travel time, and much more.

Features of the GT02A GPS device

1. Information transmission in GSM/GPRS modes

2. High sensitivity of the GPS chip

3. Option to disable the visual display

4. Wide input voltage range

5. Data transmission via SMS or GPRS

6. Operates using a car battery

7. Configuration via SMS

8. Standalone or centralized operation through a GPS monitoring platform

9. Easy installation

Operational principle in GPRS mode:

1. Register the IMEI number of your tracker with the chosen internet service;

2. Set up the tracker to work with this internet service using specific SMS notifications;

3. The tracker sends information regarding time, location, and speed of the object to the server at set intervals;

4. A map showing the object's position, speed, and path over a specified period can be viewed online.

Technical specifications of GT02A

• GSM 900/1800MHz or 850/1900MHz

• GPRS Class12, TCP/IP compatible GSM module

• GPS SiRF Star III/LP module

• 20 GPS channels

• Tracking sensitivity – 159dBm

• Acquisition sensitivity – 144dBm

• Location time for hot start 2 seconds (clear sky)

• Warm start 15 seconds.

• Cold start 38 seconds (clear sky)

• Built-in GSM-GPS antenna

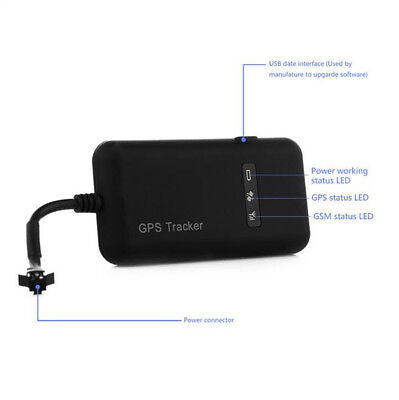

• Indicator lights Three LED indicators GPS blue GSM green power red

• Power consumption in sleep mode (12 Volt) 22mA, (24 Volt) 12mA

• Voltage (vehicle power) 9~36 Volt DC

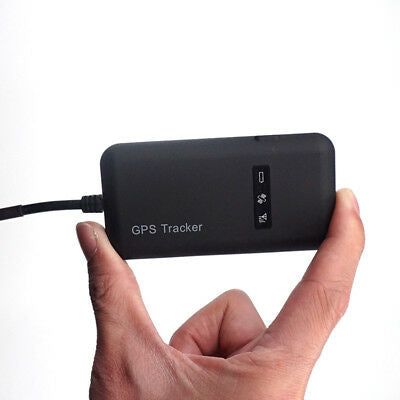

• Dimensions 90.0 (Length) x 45.0 (Width) x 13.6 (Height) mm

• Weight 45g

• Recommended temperature range -25 to +70

• Accuracy up to 10 meters

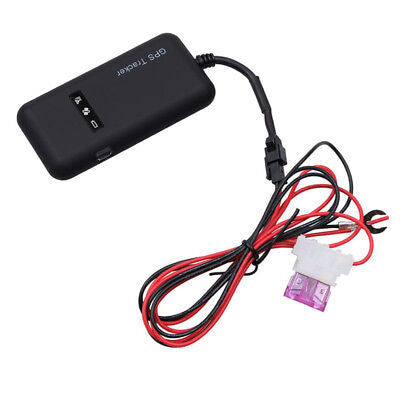

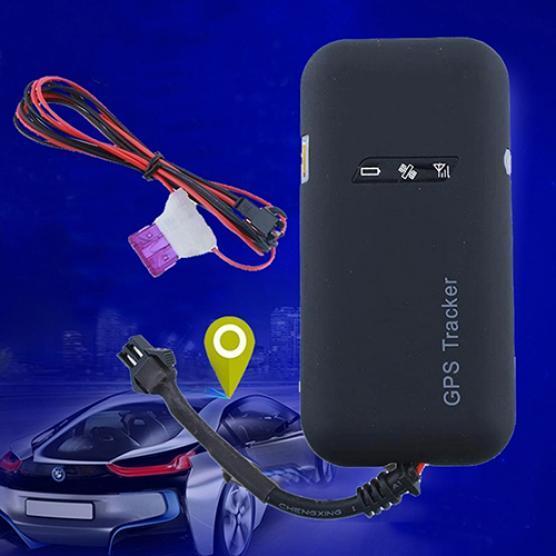

Package Contents:

GPS Tracker

Cable (Cable length 150cm)

Fuse

User manual

Fasteners
