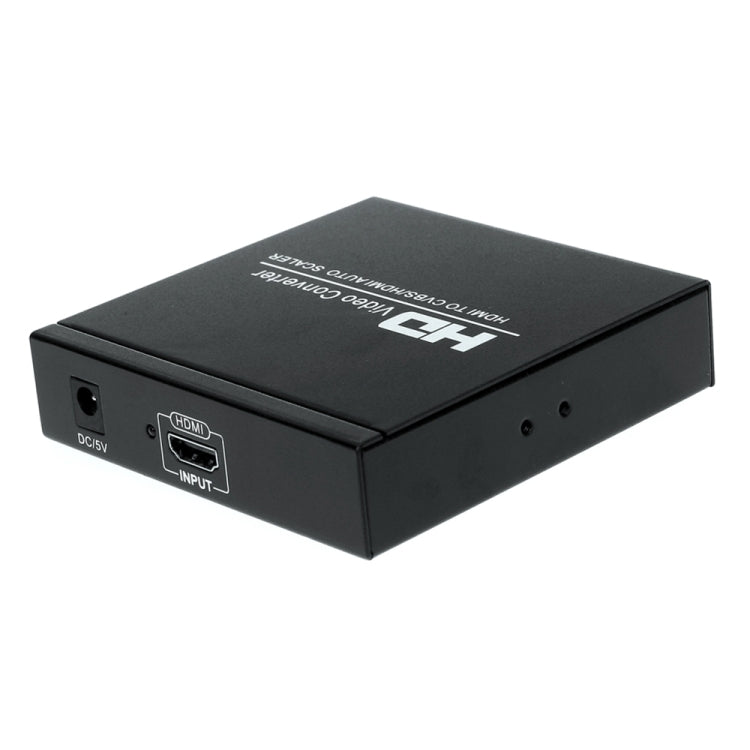

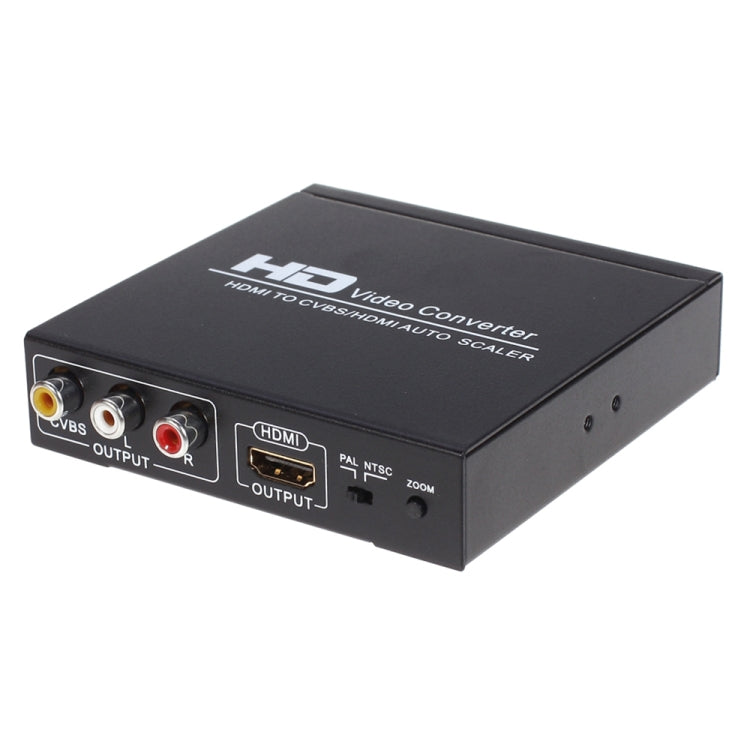

Rynx | NK-10II HDMI to HDMI/CVBS /AV Scaler Box Video Converter (Black)

Features
1. Utilizes a state-of-the-art, energy-efficient digital chip for processing. Operates continuously for 24 hours, consumes minimal energy, and maintains stable performance.
2. Employs 3D compensation technology to eliminate shaking and delays during rapid image movements.
3. Implements DCDI processing technique.
- The patented DCDI technology, developed by Faroudya, removes jagged patterns from videos produced by standard high-definition converters.
- The implemented bad interface detection can test all forms of video data streams from original film codes and accurately reconstruct video signals. This results in a static image with full vertical resolution.
- The used life-changing technology can identify image details such as skin micro-lines, blemishes, or hair. This detail processing enhances the clarity and vibrancy of images.
- Thanks to motion-adaptive processing technology, noise points are minimized without creating spots, effectively restoring the original photo image.
- The dynamic testing technology can selectively filter static images briefly and utilize image storage technology to retain the necessary chroma values.
- After applying this technology, scenes with complex colors will no longer exhibit unnecessary shading, such as on tiled roofs, patterned clothing, and falling leaves.
4. Utilization of scaler video processing that can convert high-resolution HDMI signals into CVBS outputs.
5. The built-in HDMI video/audio distributor can redirect high-definition HDMI signals.
6. The integrated video DAC can process digital HDMI video signals and convert them into analog stereo outputs.

Specifications
1. Hardware conversion, plug-and-play with no software drivers required.
2. Compatible with HDMI 1.3
3. Supports NTSC and PAL for standard outputs

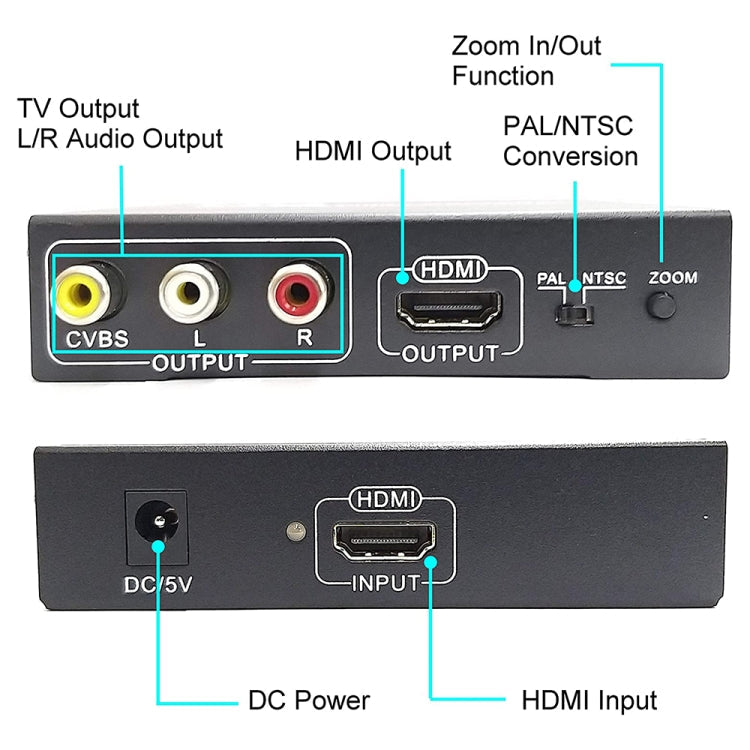

4. One HDMI input, one HDMI output, one CVBS output, and one L/R stereo output.
5. HDMI input modes include: 480i, 480P, 576i, 576P, 720P, 1080I, 1080P
6. DVI mode compatibility: 800x600, 1024x768, 1280x720, 1280x1024, 1920x1080/@60hz, etc.
7. HDMI output with AV sync output
8. AV video output: Optional PAL and NTSC
9. Video output: L/R stereo channel
10. Dimensions: 100mm(W)x105mm(D)x25mm(H)

Platform
1. Can be utilized in KTV Dream Works as an expandable platform.

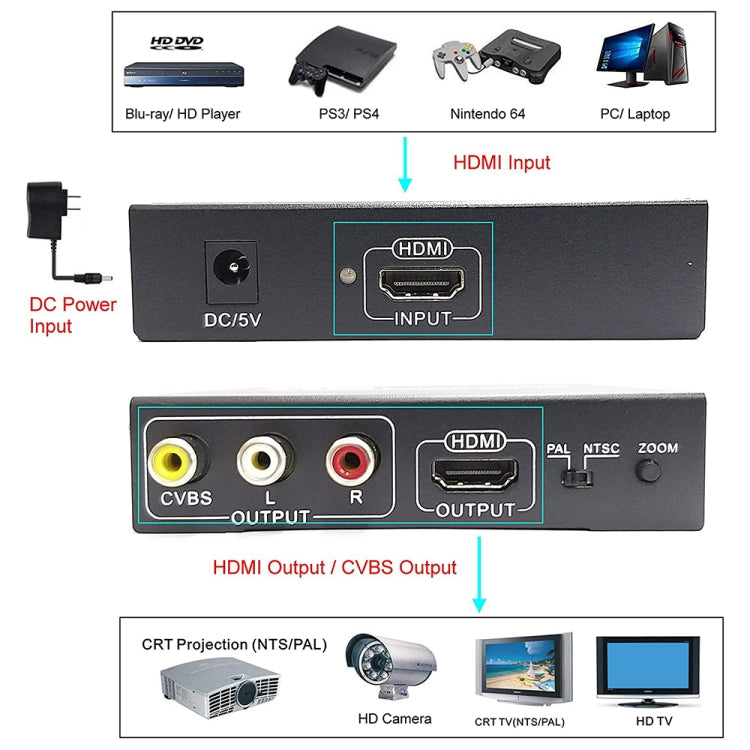

2. AV signals can be transmitted effortlessly. Simple connection with HDMI input and HDMI output.
- Does not occupy the HDMI interface of the original device.
3. Can be implemented in major conference systems serving as a presentation platform.
- Can be controlled remotely, and the HDMI output can be linked to the currently displayed platform, enabling the AV signal to be interrupted at any time, preventing unauthorized individuals from viewing irrelevant information.
4. Can also be used in key medical procedures.
- When HDMI signals are input and simultaneously output, current procedures can be monitored. The AV signals are transmitted to the monitoring room, allowing the operation to be observed remotely.
