Rynx | SATA3.0 6Gbps JMB575 Chip SATA expansion card 1 to 5 port riser card
Rynx | SATA3.0 6Gbps JMB575 Chip SATA expansion card 1 to 5 port riser card
In stock
- Free Shipping
Couldn't load pickup availability
1. Supports a 6-Port 6.0Gbps SATA III interface
2. Output signal control and automatic impedance calibration for SATA III PHY.
3. Allows for asynchronous signal recovery.
4. Accommodates spread-spectrum clocking.
5. Supports partial/sleep power-saving mode.
6. Automatic speed negotiation.
7. Enables BIST and loopback mode.
8. Supports staggered spin-up (Optional).
9. Hot-plug capability.
10. Provides asynchronous notification.
11. Compatible with ATAPI drives.
12. Supports command-based and FIS-based switching.
Specifications:
Product Name: SATA3.0 1 to 5 Expansion Card
Product Chipset: JMICRON JMB575
Product Connection: SATA 7PIN
Supported Systems: for WINXP, WIN7, WIN8, WIN10
Notes:

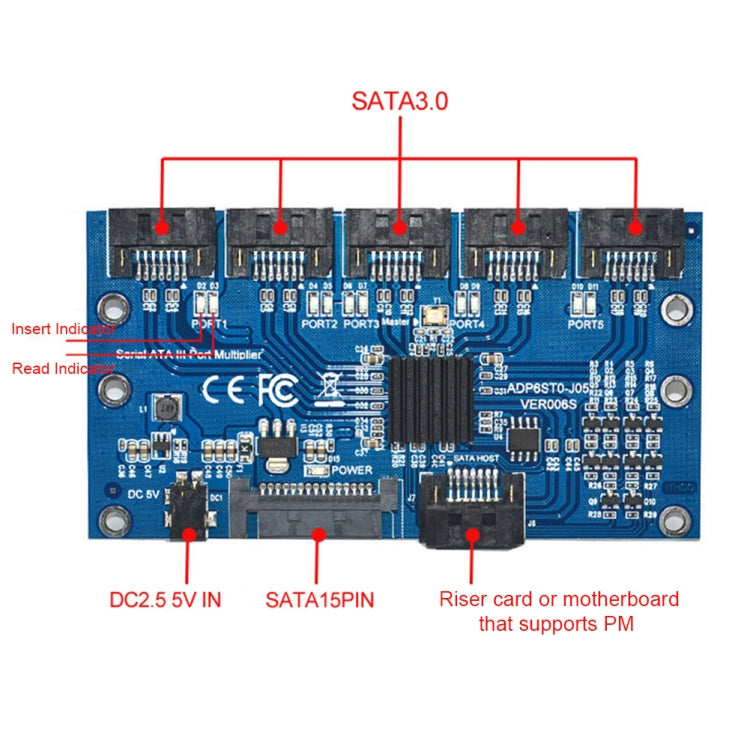

1. This expansion card requires the PM (SATA PORT MULTIPLIER) feature of the motherboard to detect 5 hard drives.
2. The main motherboard SATA must support this function; otherwise, only one card can be recognized.
3. You need to connect the SATA or DC2.5 power supply to the expansion card.

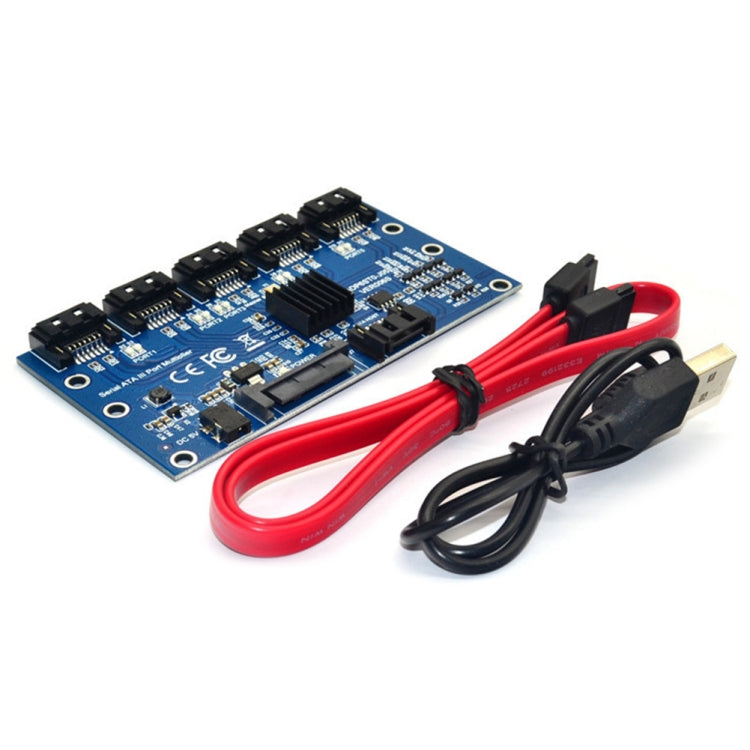

Package includes:
1 x SATA Expansion Card
1 x USB-DC Power Cable
