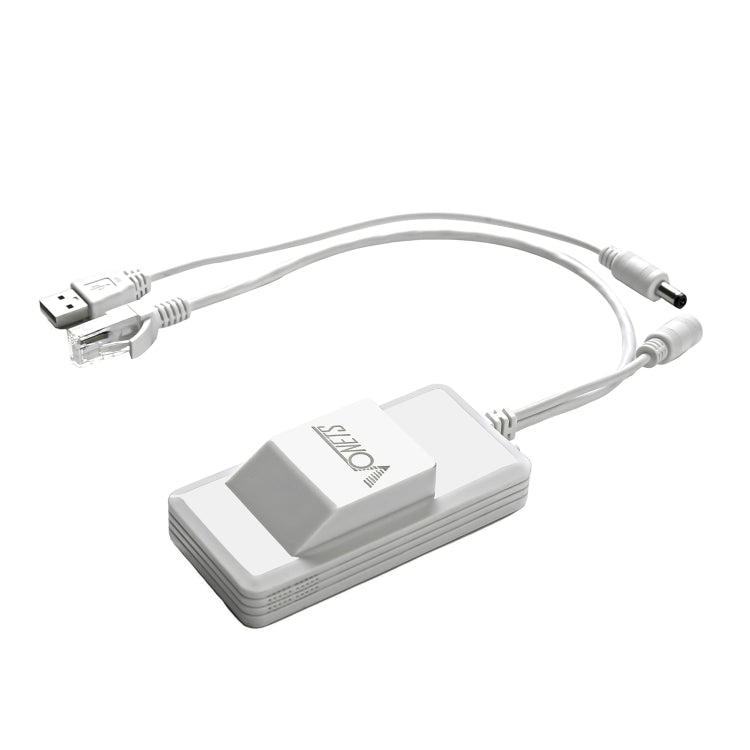

Rynx | VONETS VAP11AC 5G / 2.4G Mini Wireless Bridge with Fan Version 300Mbps + 900Mbps WiFi Repeater, Support for Video Surveillance & Control (White)

1. The WiFi Intelligent Network Bridge Relay/Router facilitates the wireless transformation of both wired and wireless functionalities.

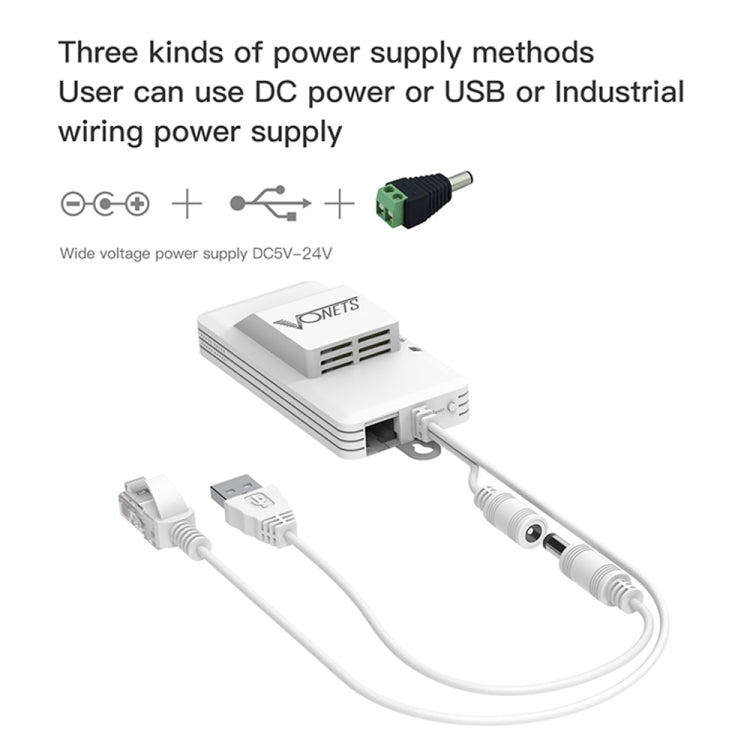

2. It supports a wide voltage range of DC5V-24V, featuring dual-stage automatic overvoltage protection (upper threshold of the protection voltage range is 29V) and connection protection.
3. Compatible with both 2.4G and 5G bands.
4. Supports WiFi transmission protocols 802.11ac, 802.11a, 802.11n.

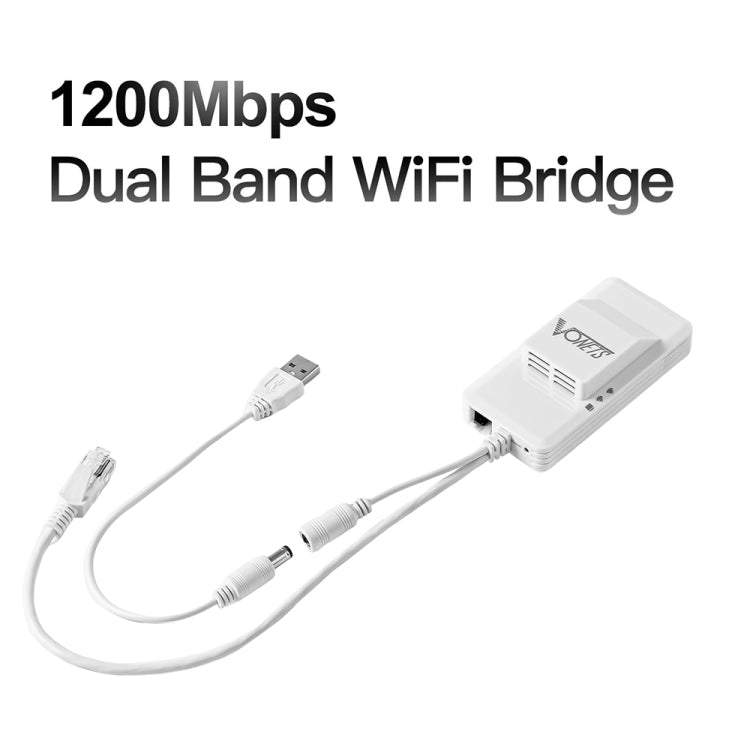

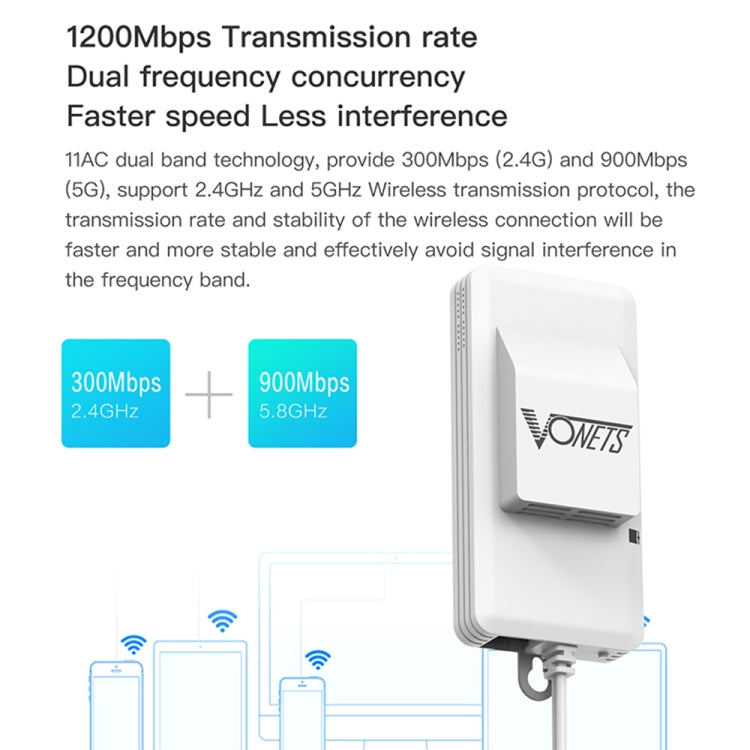

5. WiFi transmission rate: 300Mbps (2.4G) + 900Mbps (5G).
6. RF output power: 2.4G-14.5dBm, adjustable 5G-21dBm/23dBm.
7. Maximum transmission distance without obstacles from point to point: 300 meters (802.11A).

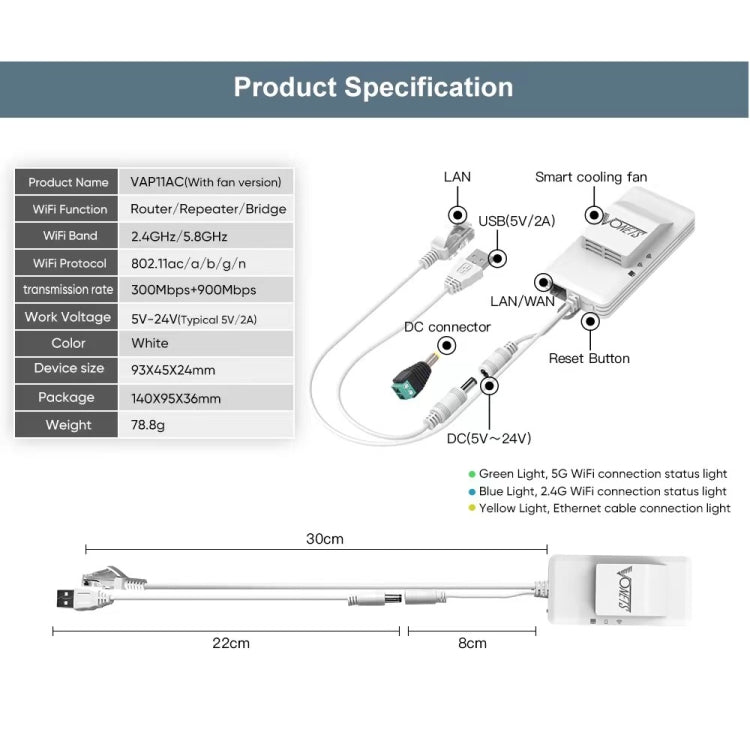

8. Two 10/100Mbps adaptive Ethernet/Network ports.
9. The WiFi hotspot automatically reconnects, providing two methods for hotspot customization (full authentication mode, SSID and password authentication mode).
10. WiFi hotspot memory, allowing storage of up to 100 hotspots.
11. Supports over 20 wireless devices simultaneously.
12. Features SSA signal strength detection and reporting function for WiFi mobile location determination.
13. Option to manually disable SSID broadcasting and turn off WiFi hardware manually.
14. Introduction of parameters for hotspot connection.
15. Proprietarily developed VDNS technology for configuring virtual domains, resolving user configuration issues.
16. WEB management support, configuration interface available in Chinese and English.
17. Utilizes temperature-compensated automatic frequency control technology (TAFC), ensuring more stable WiFi signals and preventing drops.

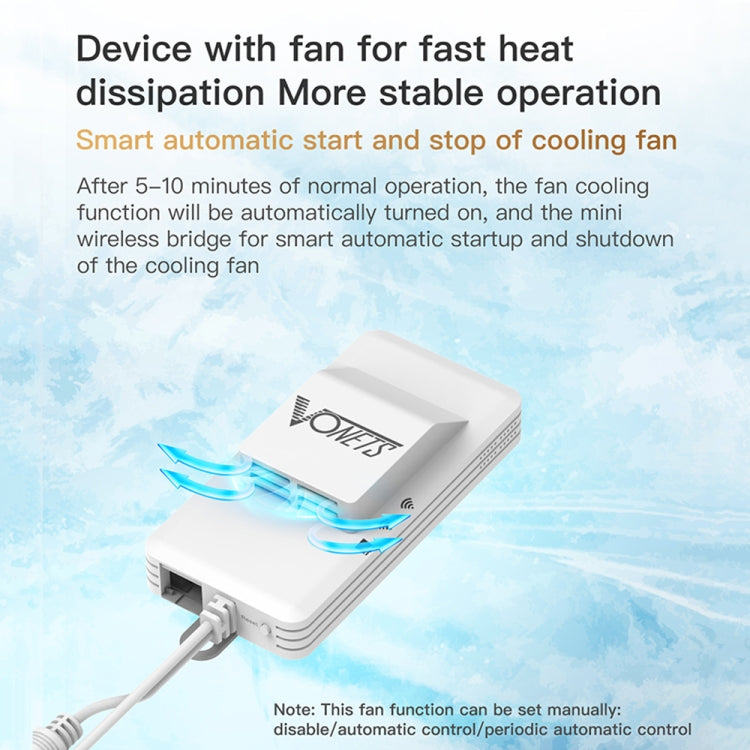

18. Integrated with 2 high-performance FEM and a smart automatic start-stop cooling fan.
19. Built-in heat sink with convection cooling openings on both sides of the case for more effective heat dissipation.
20. Operating temperature range: -40 degrees Celsius to 55 degrees Celsius.

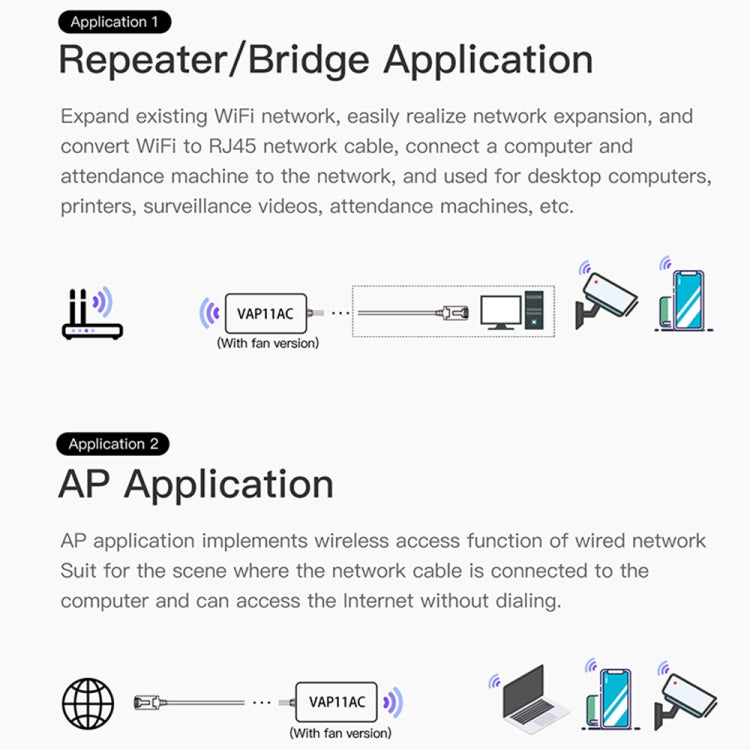

21. Support for two bridge modes for transparent transmission at IP and MAC levels, catering to different bridging applications:
- Transparent IP-level transmission (factory default), delivering IP-grade data transparently to meet most bridging needs.
- MAC-level transmission transparently conveys all data at the MAC layer (connection layer) along with MAC data, including IP-layer data.

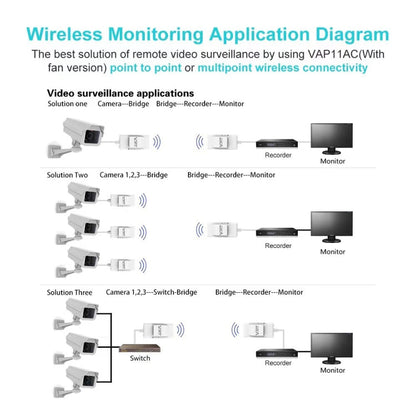

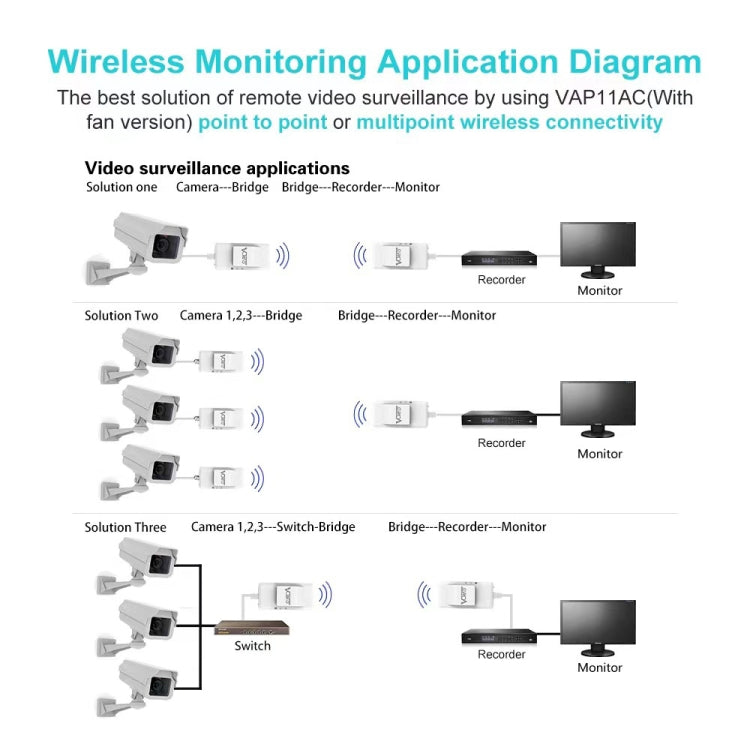

- The MAC transparent transmission can address specific applications for MAC-layer encryption, such as GoPro cameras, Cisco APs, Hikvision surveillance systems, etc.

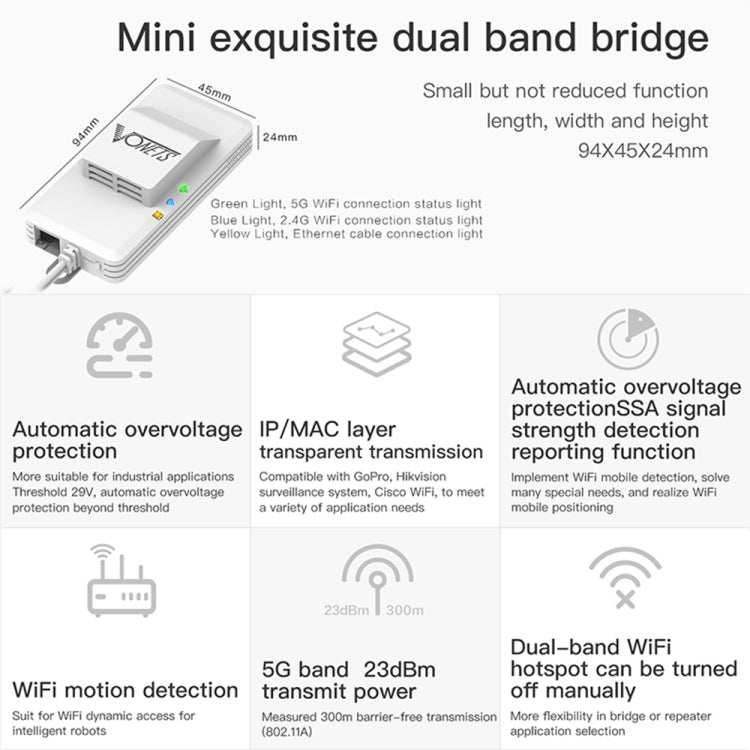

22. Dimensions: 9.3x4.5x2.4 cm.
23. Weight: 79g.
